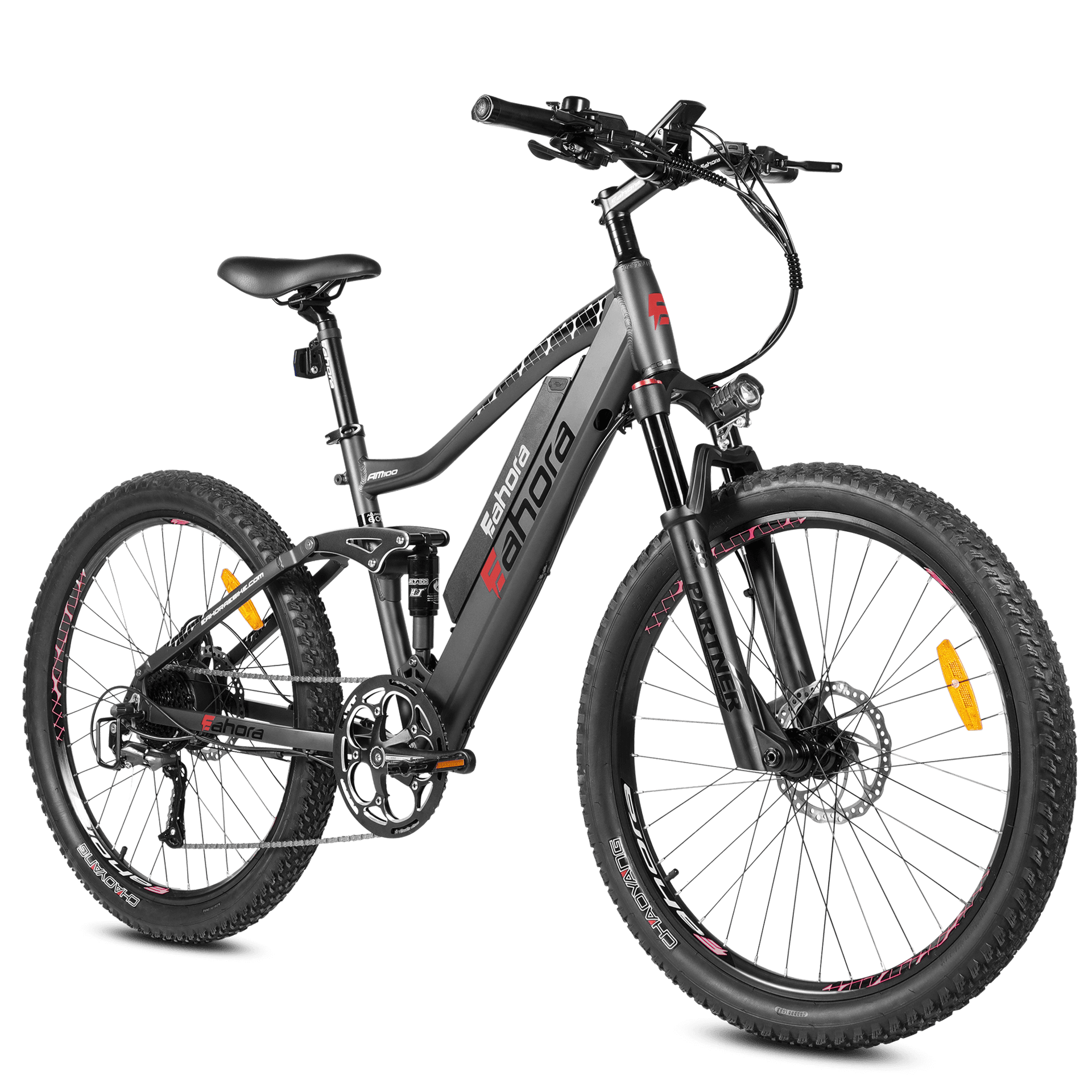

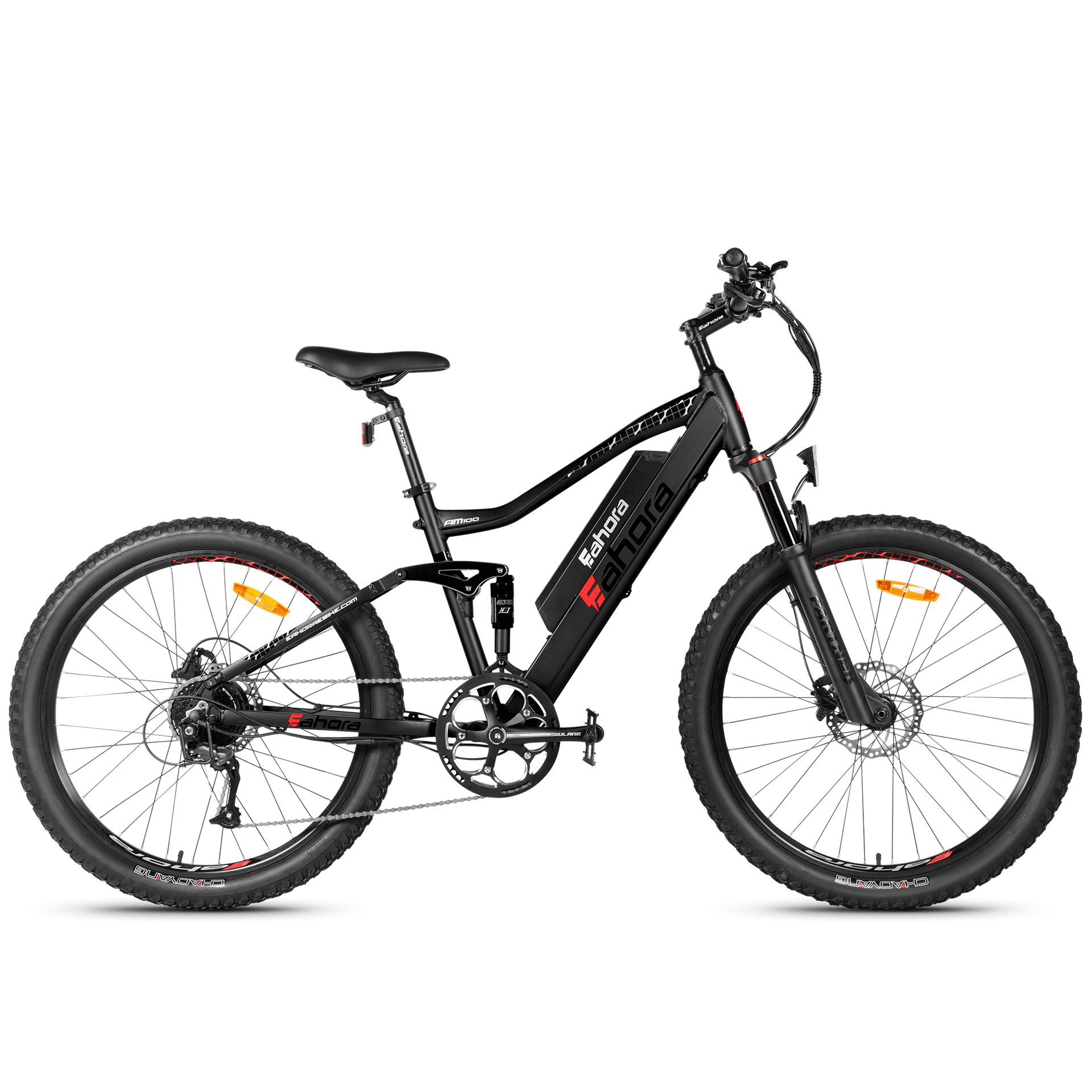

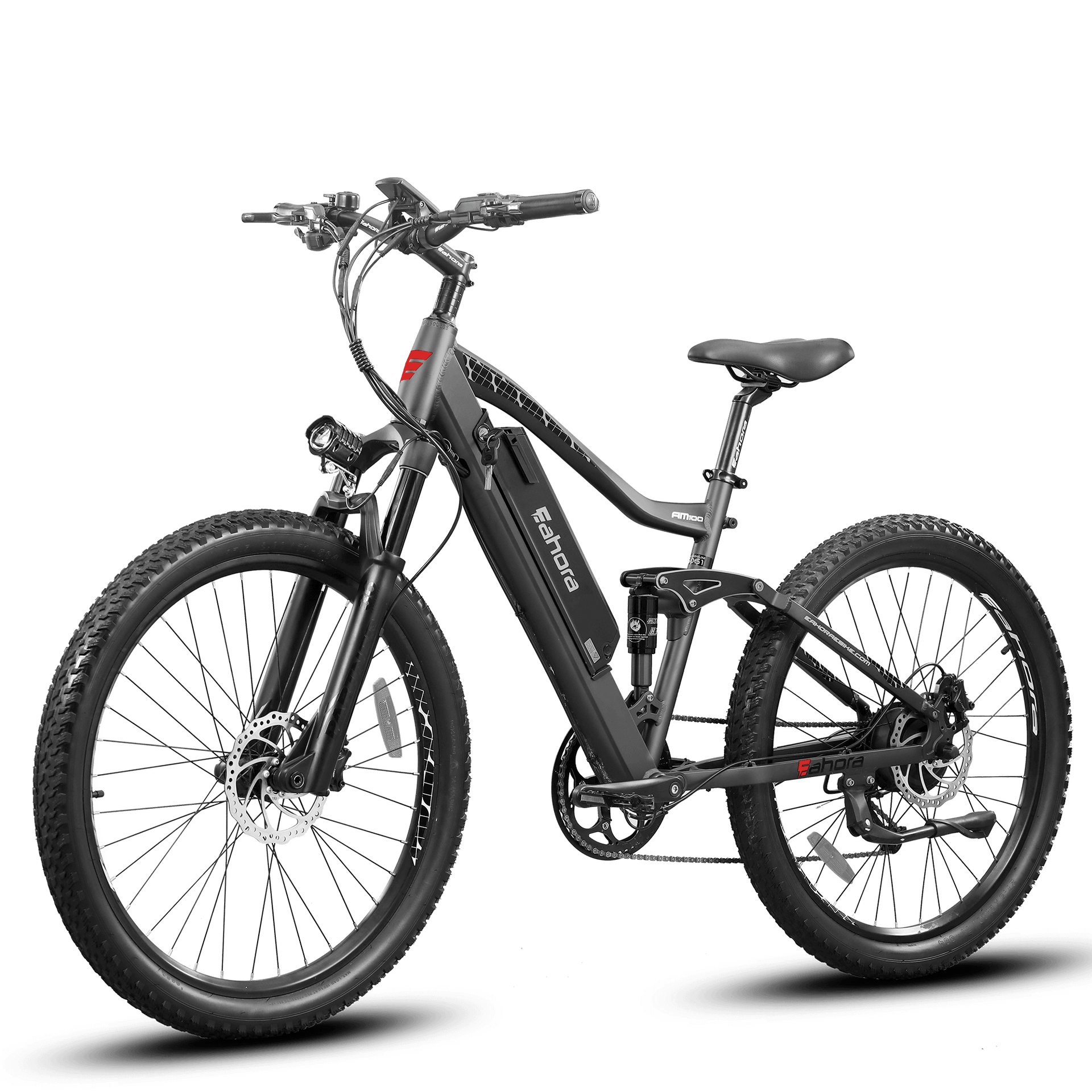

Eahora AM100 (Red)

Rated 4.8 out of 5
Based on 190 reviews
$1,329.00
$1,329.00 $1,329.00
Ride First, Pay Later. 4 interest-free payments of $332.25 with
In stock now, ships within 1-2 Days.

ABOUT AM100

A top of the line 500w electric mountain bike with the 100 travel air suspension fork and rear suspension, a removable power battery with 672Wh capacity, and 27.5" * 2.8" Chaoyang tires that can tackle almost any terrain.

WHAT'S IN THE PACKAGE

Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Headlight;
Pedals, saddle & seat post;
Product manual;
Screws and tools for assembly.

OWNER Manuals

Full Suspension Electric Mountain Bike | Eahora AM100

Born To Off-Road

500W

Hub Motor

48V 14AH

Lithium Battery

120MM

Hydraulic Suspension Fork

180MM

Hydraulic Brakes

27.5" * 2.8"

Off Road Tires

5'9" - 6'4"

Recommended Height

  • 500W Electric Mountain Bike | 500W eBike Motor | Eahora AM100

    1/2 - Electronic System

    500W Hub Motor

    Eahora design the internal structure of the motor. All the while the 500 Watt high-speed brushless motor can produce speeds up fast.

    Max Torque: 45N.m

    Gradeability: 30°

  • 500W Electric Mountain Bike | 48V 14Ah eBike Lithium Battery | Eahora AM100

    2/2 - Electronic System

    48V 14Ah Battery

    The battery is a crucial component of the electric bike. AM100 batteries ensure high safety and long life, which makes them vital for your ride to be longlasting and enjoyable! Removable design means they're easy enough even if you don't have any experience installing bikes.

    Throtte Mode Range: 28 - 29 Miles

    PAS Mode Range: 56 - 59 Miles

  • 1. MOTOR
  • 2. BATTERY
500W Electric Mountain Bike | Full Suspension Electric Mountain Bike | Eahora AM100

Size and Geometry

Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM

Ⓐ - Total Length: 76.3" or 194CM

Ⓑ - Wheel Base: 47.2" or 120CM

Ⓒ - Seat Height: 35.0" - 42.5" or 89CM - 108CM

Ⓓ - Handlebar Height: 45.6" or 116CM

Ⓔ - Rim Diameter: 23.6" or 60CM

Ⓕ - Standover: 29.5" or 75CM

Ⓖ - Reach Distance: 16.1" or 41CM

Ⓗ - Chain Stay Length: 21.2" or 54CM

Ⓘ - Seat Angle: 66.8°

Ⓙ - Seat Tube Length: 17.7" or 450MM

Ⓚ - Bike Width: 25.9" or 66CM

Ⓛ - Top Tube Length: 20.8" or 53CM

Technical Specifications

To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Bike Class

Class 3 ebike with throttle and pedal asssit functions.

Bike Weight

60.6lbs in total with the battery.

Range per Charge

28 - 29 miles on throttle mode. 56 - 59 miles on pas mode.

Payload Capacity

Recomend rider weight within 240lbs.

ELECTRONIC SYSTEM

Motor

RW05 500W DC hub motor, cassette; Max torque: 55N.M.

Battery

48V 14AH 672WH lithium battery.

Controller

48V, 20 ± 0.5A; 9MOS.

Charger

54.6V ~ 2A smart charger; input 100-240V 50/60HZ.

Display

3" portrait color display(YL-80C-C), IP65 Waterproof; brightness: 100CD/M2.

Lights

Front light 48V LED light; rear relfector.

Wiring

Water resistant connectors and wiring harness.

BICYCLE COMPONENTS

Frame

6061 aluminum; frame size: 27.5" * 18".

Brakes

180mm front and rear hydraulic disc brakes.

Brake Levers

Aluminum alloy comfort grip levers with motor cutoff switch.

Tires

27.5" * 2.8" CHAOYANG tires; tire pressure marked on sidewall.

Fork

Hydraulic suspension alloy fork, adjustable; 120MM travel distance.

Rear Suspension

Spring suspension(HLT-100).

Chain

KMC chain.

Crank Set

52T * 170MM; single-sided chainring guard

Shifters

LTWOO(SL-V5009-9W) 9-speed.

Derailleur

LTWOO(RD-V5009-M) 9-speed.

Freewheel

LTWOO, 9-speed, 11-32T.

Grip

Comfort rubber ergo grips.

Handlebar

YC-B100 rise handlebar.

Pedals

Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.

Headset

Intergrated threadless headset.

Rack

None.

Kickstand

Aluminum leg with durable plastic cover, adjustable.

Fenders

None.

Saddle

Comfort leather saddle.

Rims

Aluminum 36H spoke wheel.

Seatpost

Aluminum seapost with clamp.

Bell

Metal.
