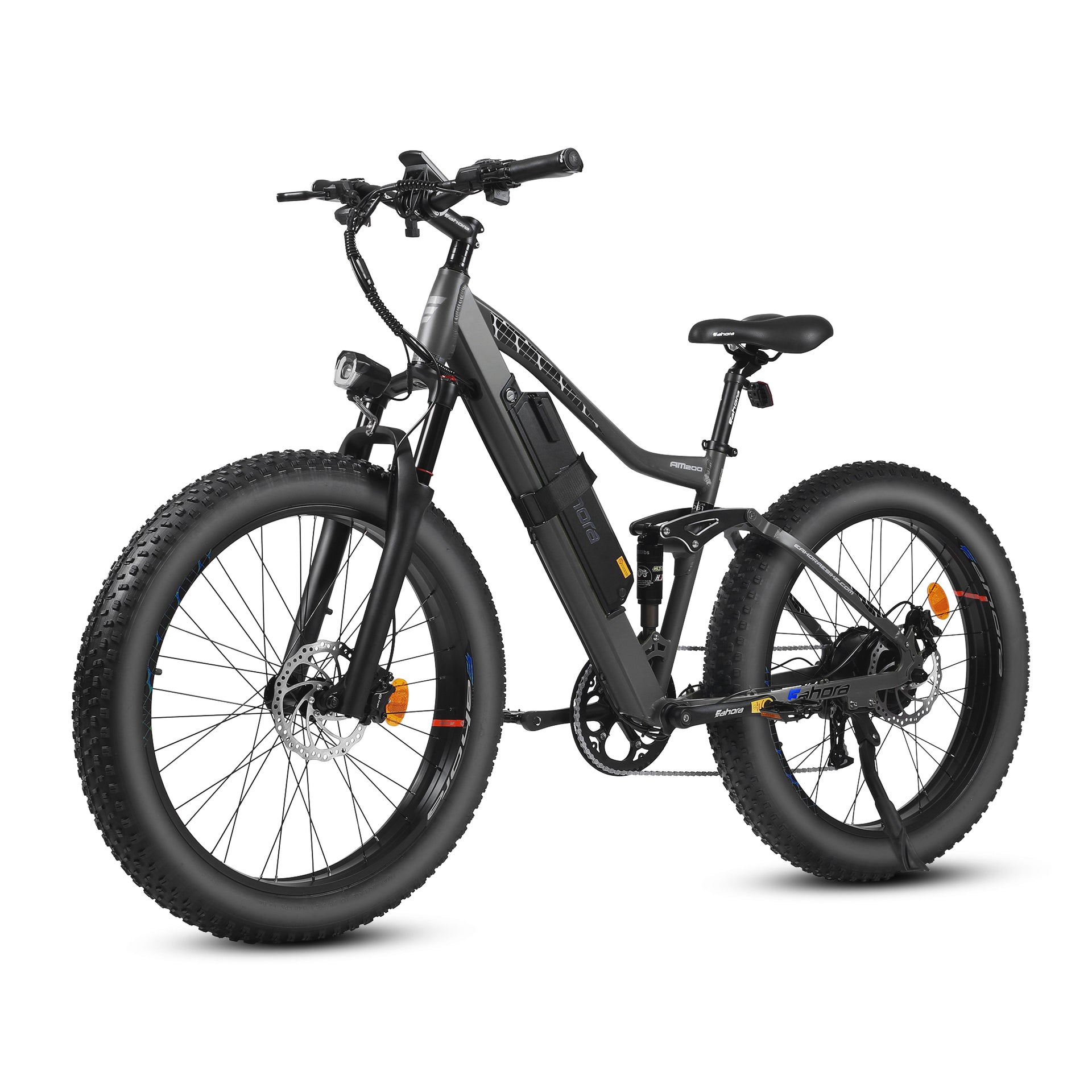

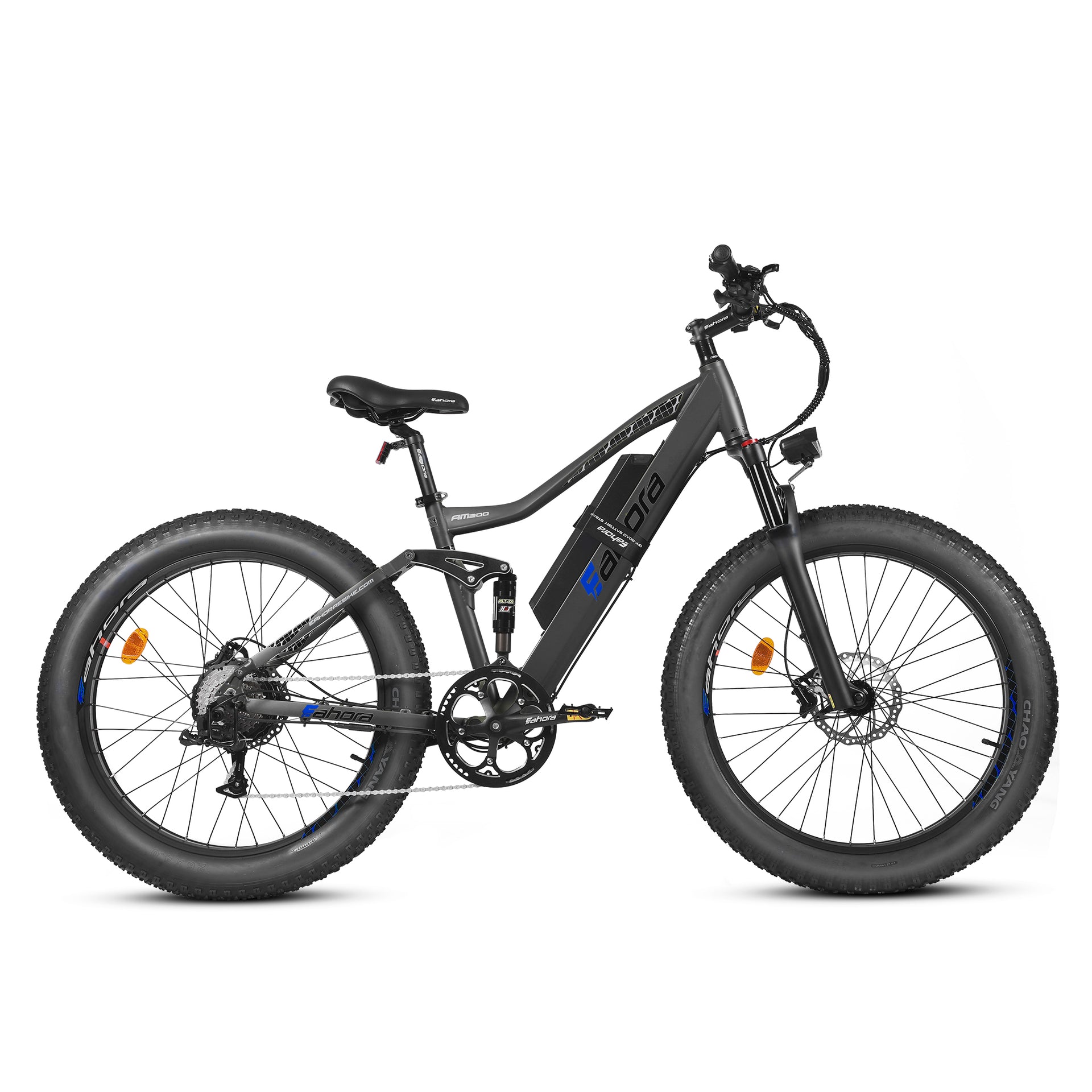

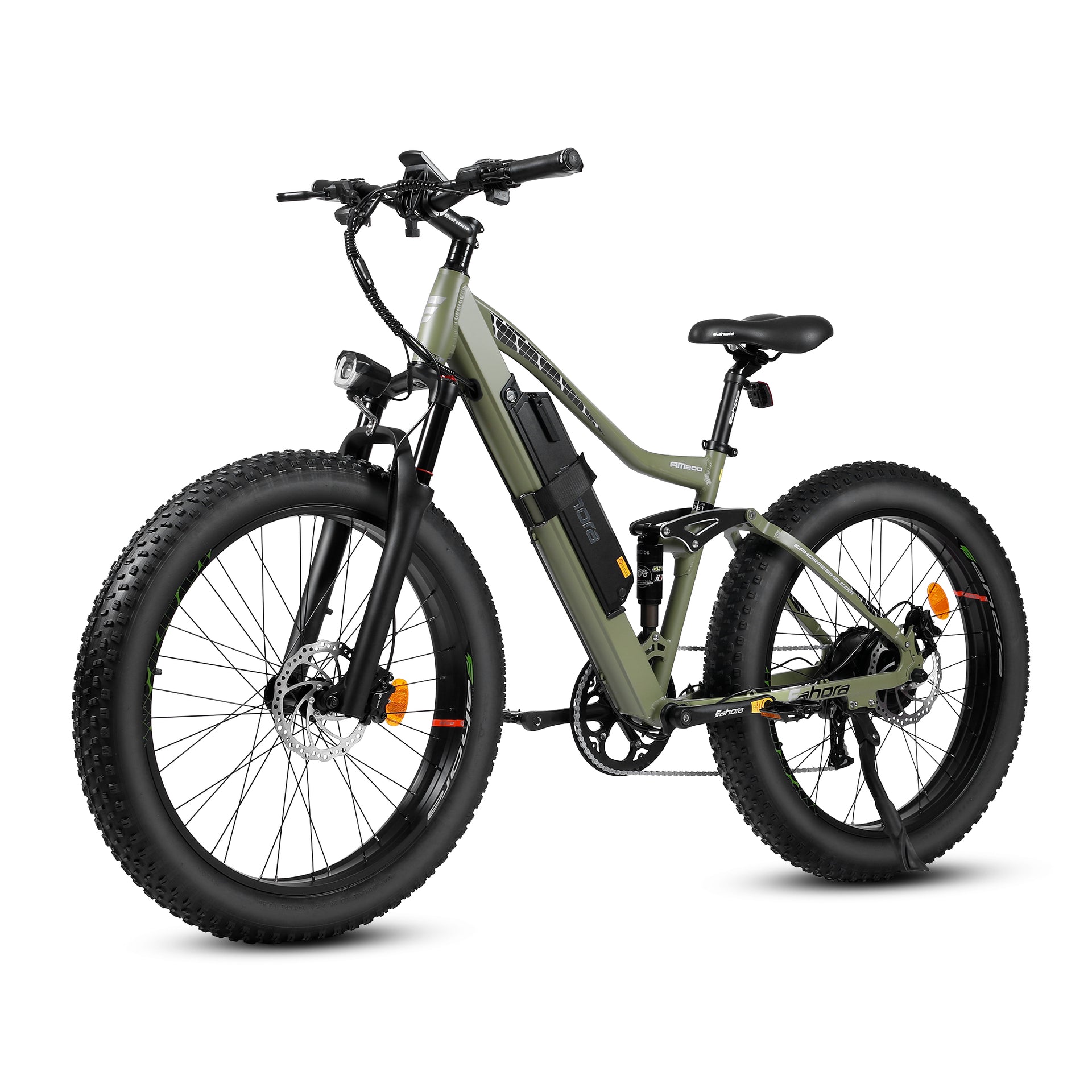

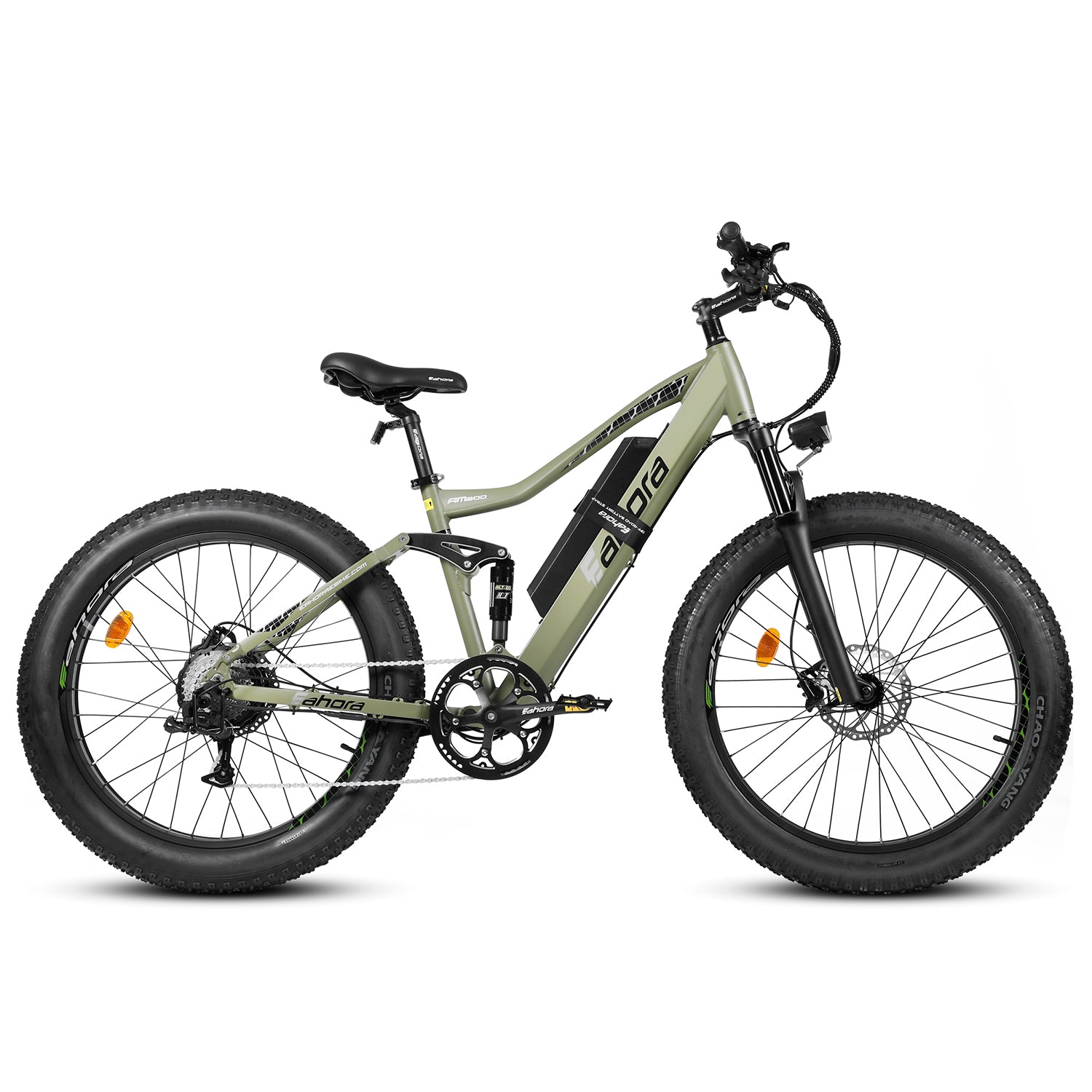

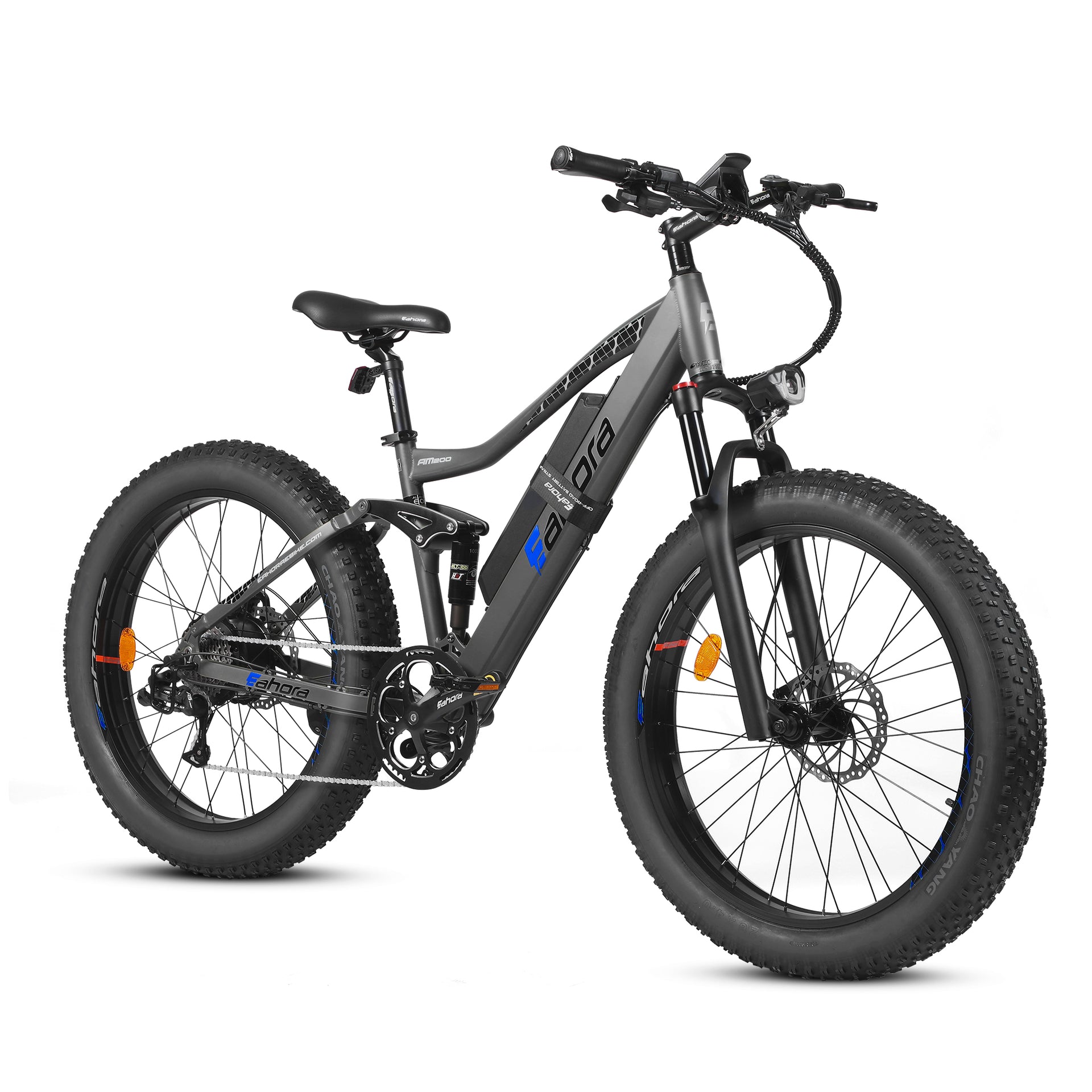

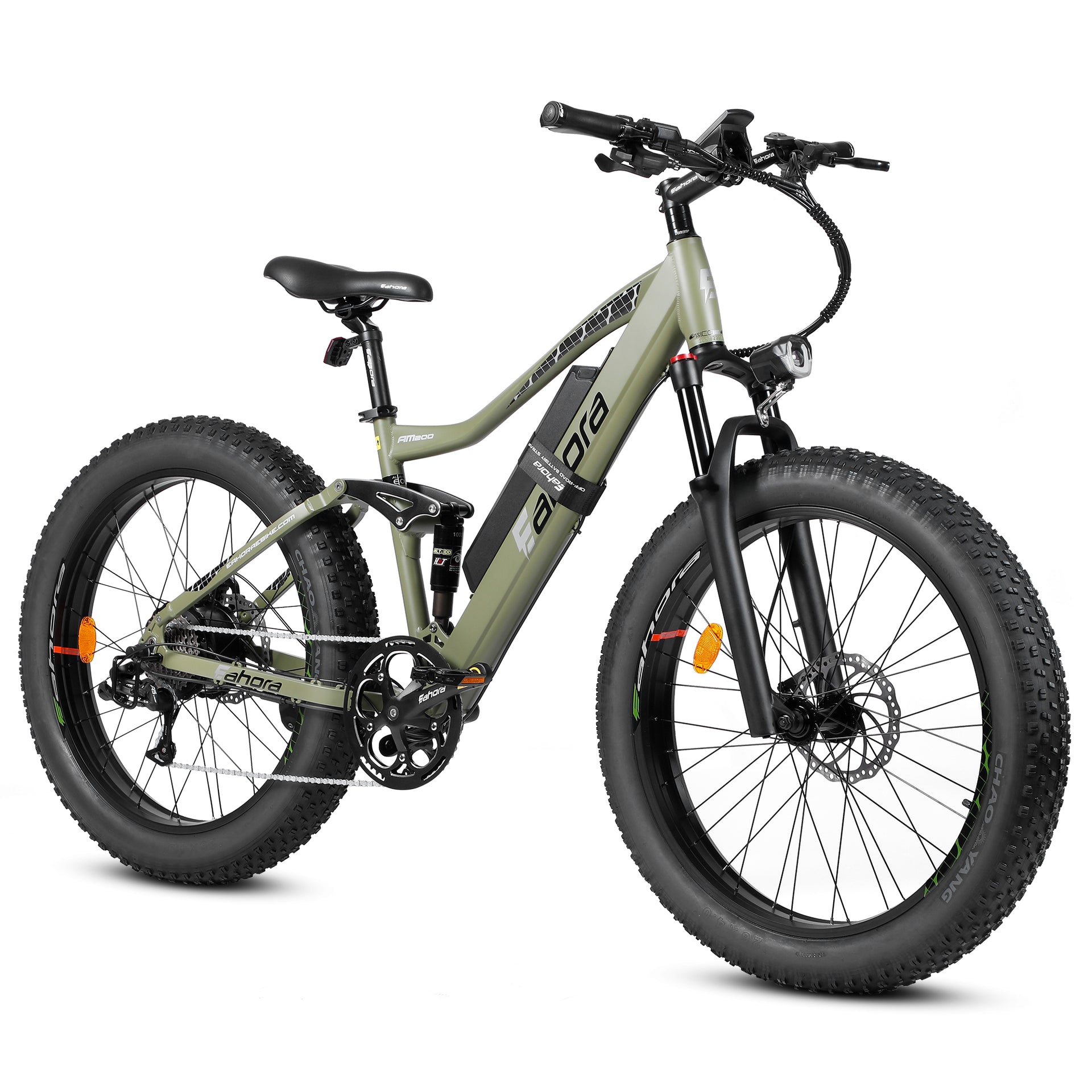

Eahora AM200

Rated 4.9 out of 5
Based on 102 reviews
Ride First, Pay Later. 4 interest-free payments of $449.75 with

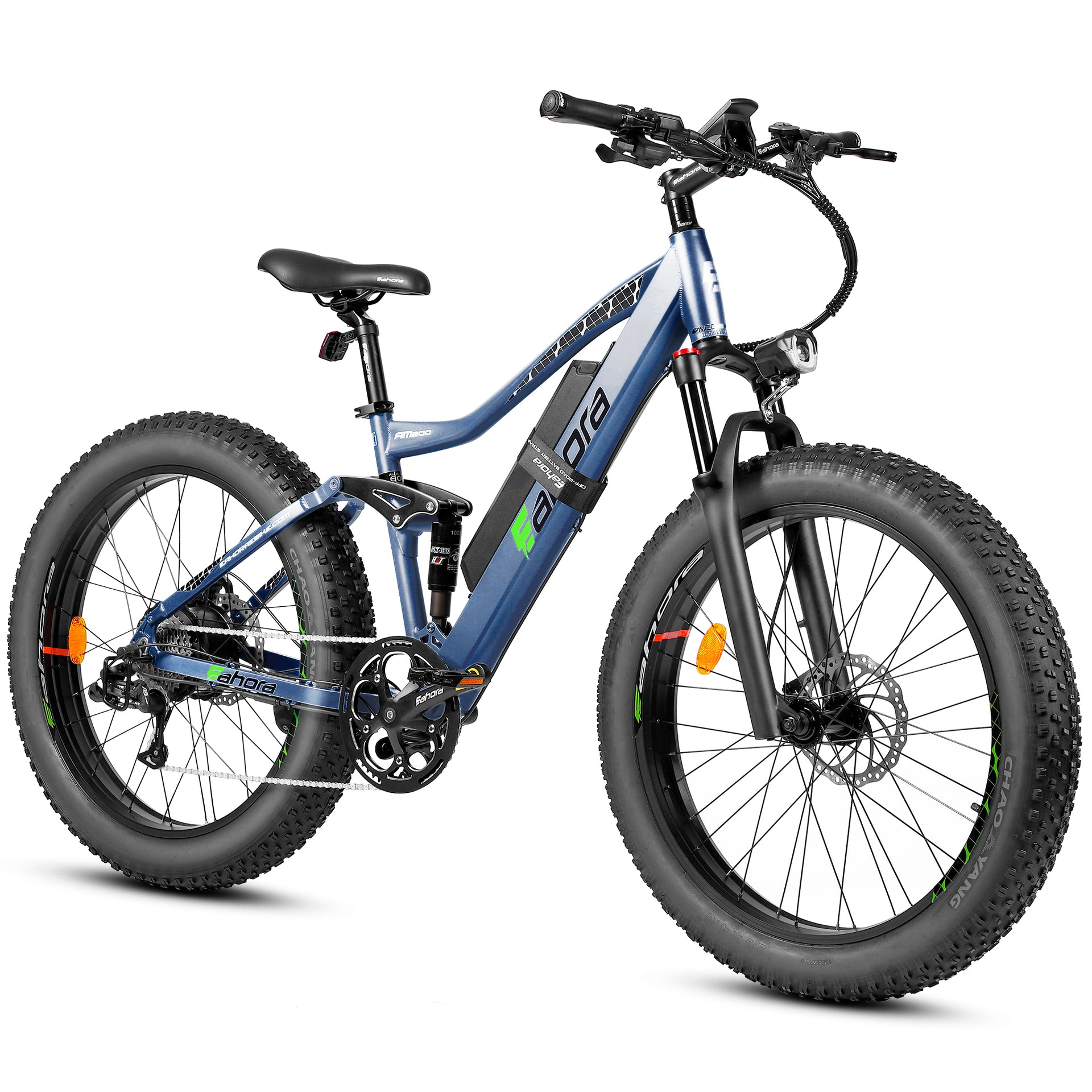

Color Blue
In stock now, ships within 1-2 Days.


As the continuously improving flagship model, the AM200 now's a big difference and a next-level riding experience. Custom geared-hub motor with higher uphill capabilities, new high-performance hydraulic disc brakes with better-stopping power, and a magnesium alloy air fork to maximize comfort.


Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Pedals, saddle & seat post;
Product manual;
Screws and tools for assembly.

OWNER Manuals

Fat-Tire "AM100"


Hub Motor

48V 14AH

Lithium Battery


Hydraulic Suspension Fork


Hydraulic Brakes

26" * 4"

All Terrain Fat Tires

5'9" - 6'4"

Recommended Height

  • Fat Tire Electric Bike 750 Watt | 750W eBike Motor | Eahora AM200

    1/2 - Electronic System

    750W Hub Motor

    Eahora designs the internal structure of the motor. All the while, the 750 Watt high-speed brushless motor can reach maximum speed within 10 seconds.

    Max Torque: 65N.m

    Gradeability: 25°

  • Fat Tire Electric Bike 750 Watt | 48V 14Ah eBike Lithium Battery | Eahora AM200

    2/2 - Electronic System

    48V 14Ah Battery

    A good battery is vital to the electric bike, our battery to ensure long life and high safety. Removable, hidden in the frame, and easy to install. 5- 6 hours to charge with original 2A charger.

    Throtte Mode Range: 26 - 28 Miles

    PAS Mode Range: 53 - 56 Miles

  • 1. MOTOR
  • 2. BATTERY
Fat Tire Electric Bike 750 Watt | Full Suspension Electric Mountain Bike | Eahora AM200

Size and Geometry

Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM

Ⓐ - Total Length: 76.0" or 193CM

Ⓑ - Wheel Base: 46.4" or 118CM

Ⓒ - Seat Height: 33.7" - 39.4" or 86CM - 100CM

Ⓓ - Handlebar Height: 41.3" or 105CM

Ⓔ - Rim Diameter: 24" or 58CM

Ⓕ - Standover: 30.71" or 78CM

Ⓖ - Reach Distance: 16.5" or 42CM

Ⓗ - Chain Stay Length: 19.7" or 50CM

Ⓘ - Seat Angle: 72°

Ⓙ - Seat Tube Length: 13.8" or 35CM

Ⓚ - Bike Width: 26.4" or 67CM

Ⓛ - Top Tube Length: 21.7" or 55CM

Technical Specifications

To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.

Bike Class

Class 3 ebike with throttle and pedal asssit functions.

Bike Weight

66.1lbs in total with the battery.

Range per Charge

26 - 28 miles on throttle mode. 53 - 56 miles on pas mode.

Payload Capacity

Recomend rider weight within 280lbs.



750W DC hub motor, cassette; Max torque: 65N.M.


48V 14AH (672WH) lithium battery.


48V, 20 ± 1A; 9MOS.


54.6V ~ 2A smart charger; input 100-240V 50/60HZ.

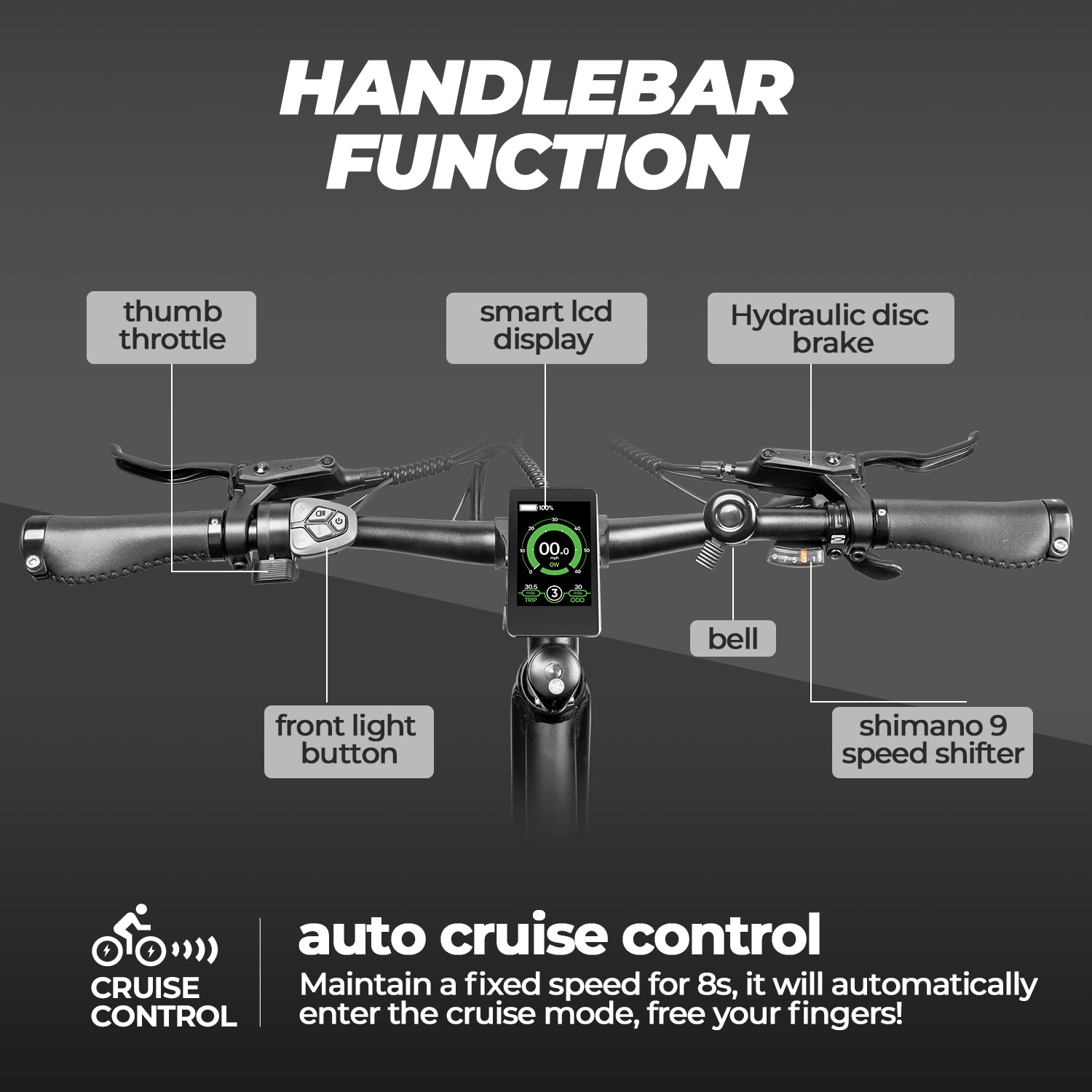

3" portrait color display(KD986), IP65 Waterproof; brightness: 100CD/M2.


Front light 48V LED light; rear relfector.


Water resistant connectors and wiring harness.



6061 aluminum; frame size: 26" * 21.5".


180mm front and rear hydraulic disc brakes.

Brake Levers

Aluminum alloy comfort grip levers with motor cutoff switch.

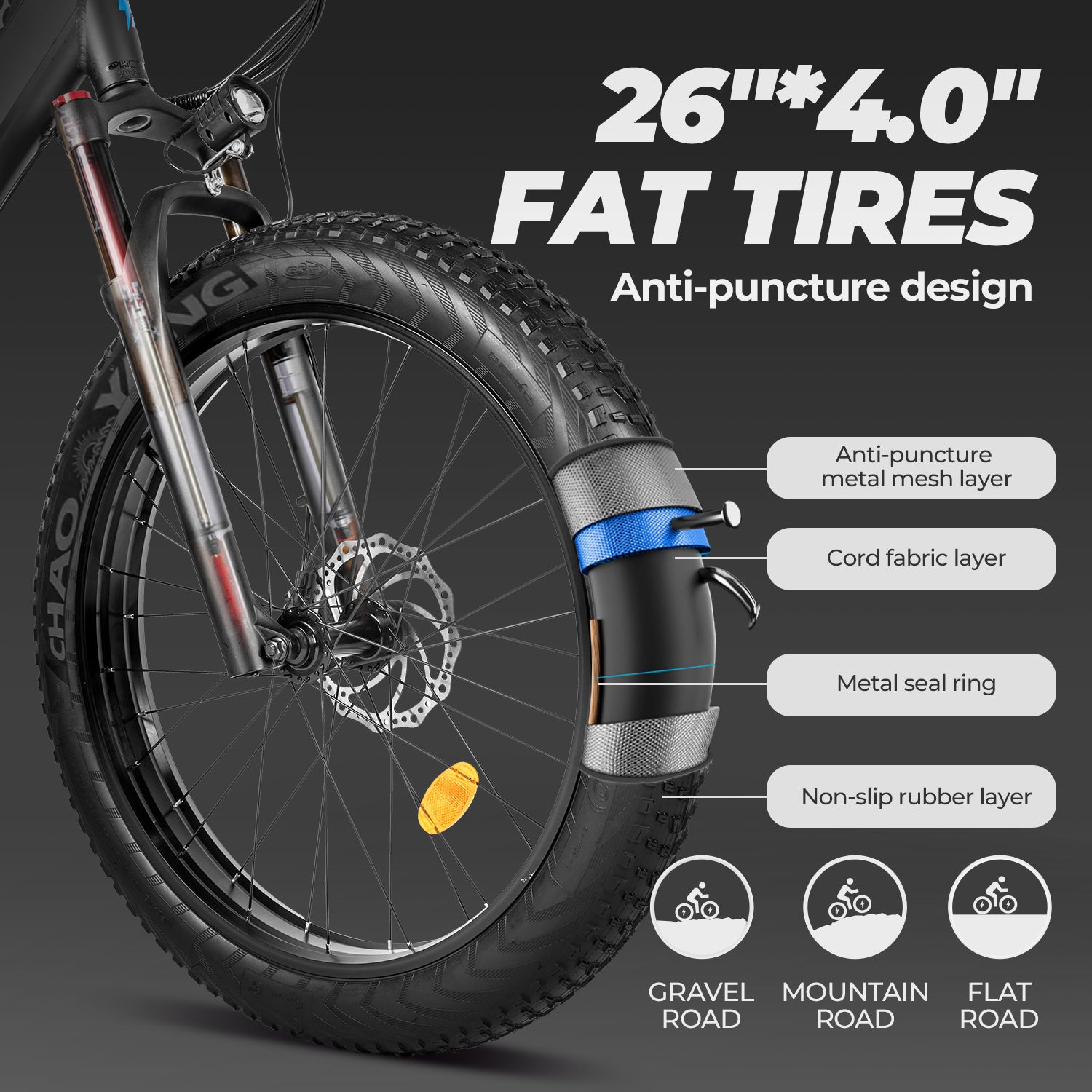

26" * 4.0" CHAOYANG tires; tire pressure marked on sidewall.

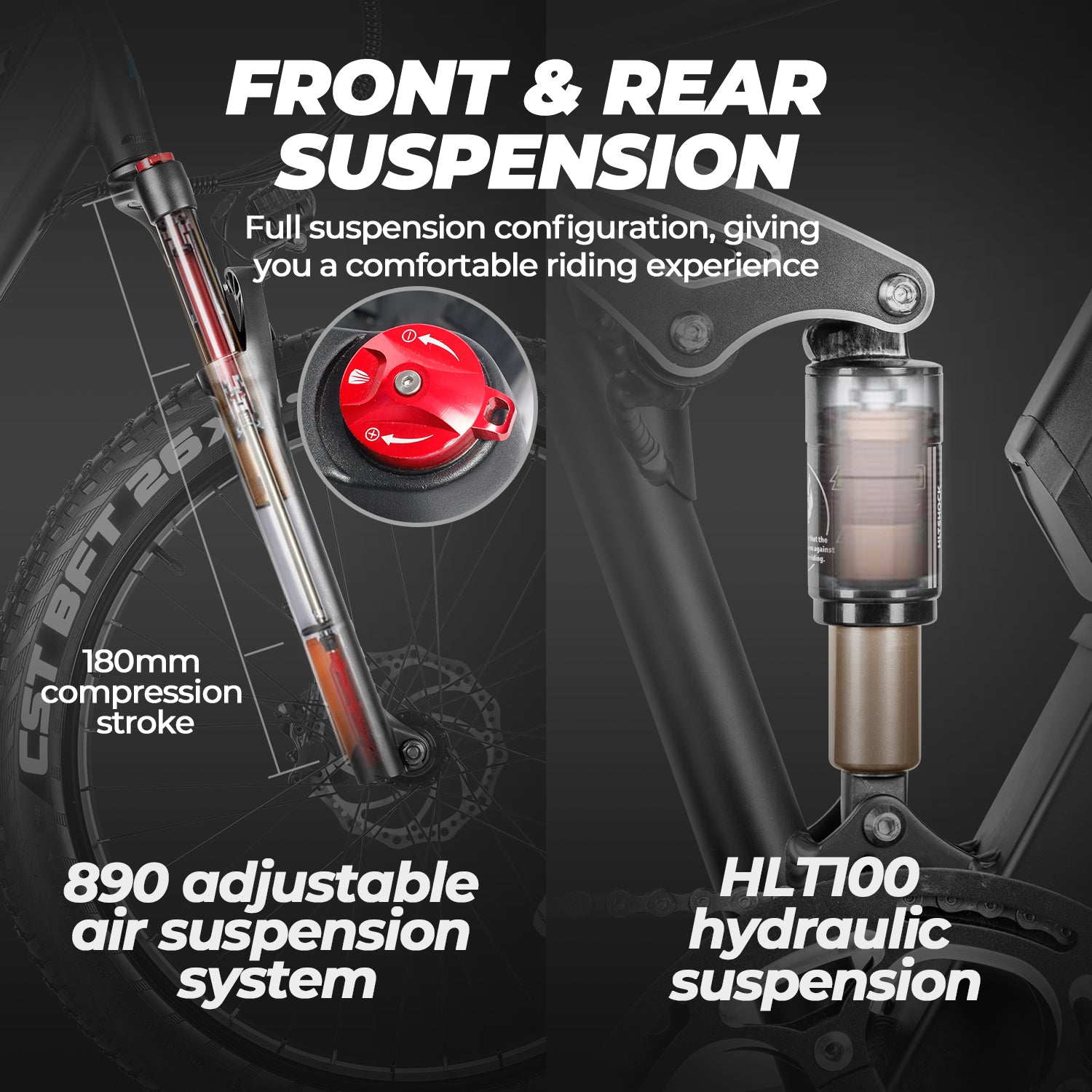

Air suspension alloy fork, adjustable.

Rear Suspension

Spring suspension(HLT-100).


KMC chain.

Crank Set

52T * 170MM, dual-sided chainring guard.


LTWOO(SL-V5009-9W) 9-speed.


LTWOO(RD-V5009-M) 9-speed.


LTWOO, 9-speed, 11-32T.


Comfort rubber ergo grips.


Rise handlebar.


Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.


Intergrated threadless headset.




Aluminum leg with durable plastic cover, adjustable.




Comfort leather saddle.


Aluminum 36H spoke wheel.


Aluminum seapost with clamp.



average rating 4.9 out of 5
Based on 102 reviews
  • 5 Stars
    91 Reviews
  • 4 Stars
    11 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
102 Reviews
Reviewed by J. P.
Verified Reviewer
I recommend this product
Rated 5 out of 5
Review posted

Love my new Am 200

I am 6’8”. 54 years of age and new to the electric mountain bike world. This bike absolutely exceeded my expectations. I use it predominantly for riding on the beach and road cruising. The bike fits me perfectly, I might fit it with an oversized saddle post later on, just to get the extra needed length to fully extend my legs. It was easy to assemble and took me under 2 hours to tweak and adjust to my liking. I can recommend this bike to anyone in the market for an affordable e-bike.

Was this helpful?
Reviewed by Cromwell C.
Verified Reviewer
I recommend this product
Rated 4 out of 5
Review posted

Great bike for street and moderate trails

Overall I am pretty happy with this bike. While researching other bikes at this price point, this was the only one I could find that had a 9 speed shifter and was under 70 lbs. The 9 speed shifter has been really useful. Likewise, the option to adjust the percentage and number of assist levels also helps to dial in the bike for use on different terrain.

However, as other reviewers have pointed out, the bike struggles a bit on uphills. I ended up replacing the 52T chain ring with a smaller 42T ring and this works much better. On narrow uphill trails, my only option with the original ring was to crank up the pedal assist above 30% once I reached the lowest gears. Not the safest option because you end up taking a straighter line and you have to make quick decisions navigating obstacles. With the 42T ring, I can shift to 2 lower gears at around 25% assist and this gives better control. There is also not much of a drop-off in top speed with the 42T because I could still reach around 28 mph on the highest gear with plenty of resistance on the pedals. The bike could still use some additional help with the lower gears so at some point I might end up changing out the rear cassette to a Shimano HG-201. That would give the same top gears but lower gear ratios for the lower gears.

The main reason though that this bike gets only 4 stars rather than 5 is the design of the rear rack attachment. There are two attachment points on the seat stem that look to be designed to accommodate a…

Was this helpful?
Reviewed by Mark M.
Verified Reviewer
I recommend this product
Rated 5 out of 5
Review posted

My new Am200 is awesome

The bike arrived in 2 days, wow, it was packaged really well, not a scratch on it, the build quality is really nice, I ride alot of hills and it makes the really strenuous hills seem like a piece of cake, shocks work well and the bike handles nice

Was this helpful?
Reviewed by Tim G.
Verified Reviewer
I recommend this product
Rated 5 out of 5
Review posted

Great bike that's great fun with amazing, useful & intuitive technology.

I love my Eahora AM200 E-PAS and bought it to ride predominantly off-road. I was especially attracted by the E-PAS system which essentially can re-charge the battery as you ride! Therefore extending the range of the battery, ride & fun factor. I'm an experienced mountain biker, some would say expert level, who has owned and ridden dozens of bikes in many parts of the world. I'm 6 foot even and weigh in around 185 lbs. Amongst those previous bikes a couple were E-mountain bikes. Though those have been sold as I prefer the experience of riding a traditional mountain bike on the trails where I live in Orange County, CA. So, I love the E-PAS, the color display and how you can easily customize almost anything, the cruise control, those fat tires, the look of the bike, the ease of use and the way the bike rides in general. And I love trying to improve bikes to be better suited to how and where I like to ride. So, here's what I've done so far. As mentioned in other people's reviews, the standard rear shock absorber is not up to the job. Even riding gently off a curb into the street the shock would collapse causing the rear swing arm of the bike to contact (with a loud and metallic bang) the rear of the bike frame. When I took it on to some gentle off road trails it sounded like a jack hammer! Something, or me, would've got broke. Me being me, I had in my mind what I thought would be needed to fix this. I contacted Eahora's customer service through email and they got straight back to…

Was this helpful?
Reviewed by Eric A., from United States
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great deal for the price

Easy to set up bike. I have put little over 100 miles on this bike. I love the ebike. The battery life is amazing and it has allowed me to get back into enjoying a long bike ride.

Was this helpful?
