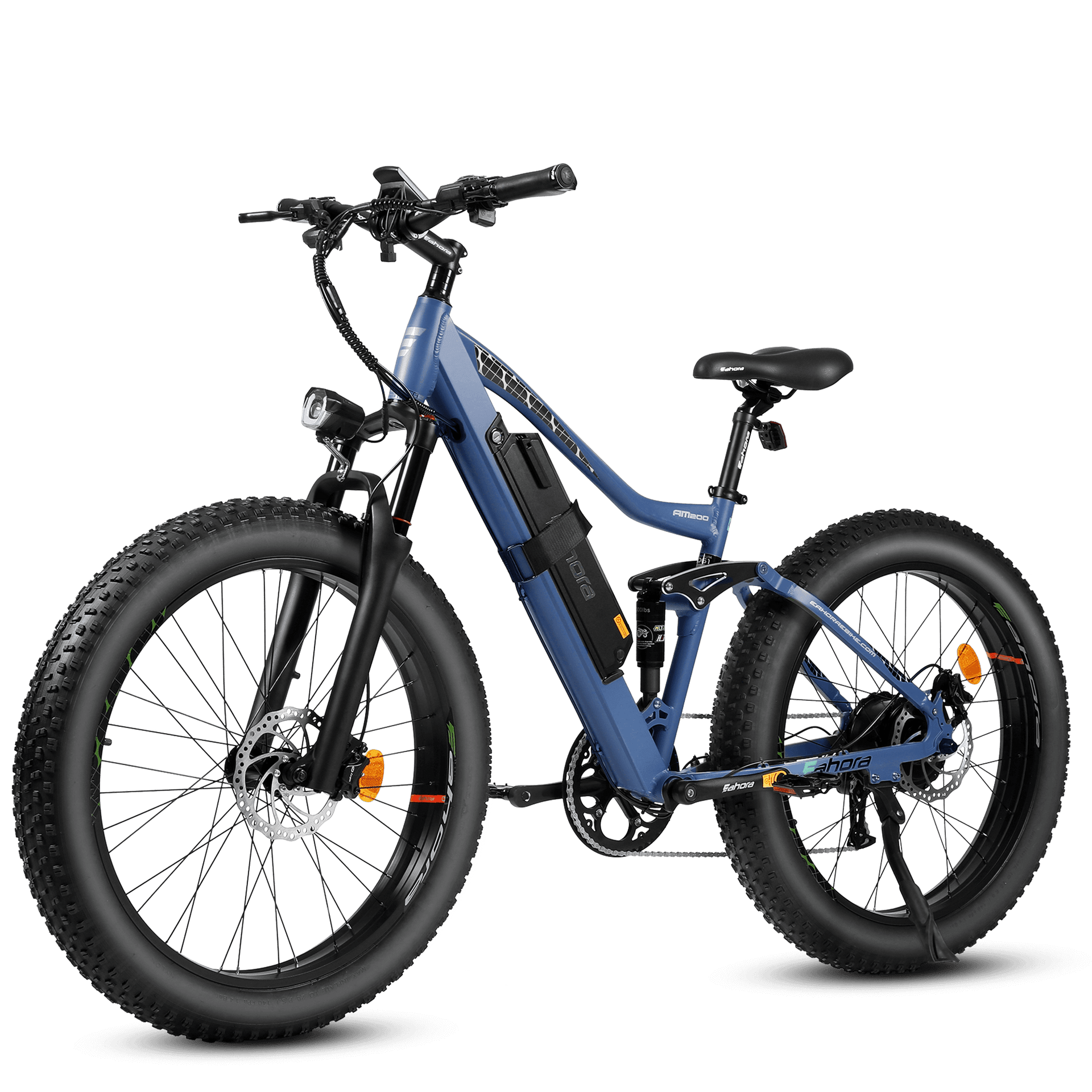

Eahora AM200 Special 2023 (Blue)
4 interest-free payments of $424.75
Buy what you love and split the cost. It’s easy and interest-free.
Add item(s) to your cart
Go to checkout and choose
Enter your debit or credit card information
Your first payment is taken when the order is processed and the remaining 3 are automatically taken every two weeks
See payment terms. A higher initial payment may be required for some consumers. CA residents: Loans made or arranged pursuant to a California Financing Law license.
ABOUT AM200 Special 2023
Allow us to re-introduce our classic fat tire ebike, AM200 Special 2023! Refreshed and ready to hit any and all-terrain adventures in comfort and style. The latest AM200 Special has a 40% larger battery (20 AH), upgraded 1000W geared-hub motor with higher uphill capabilities and better controller option. It also includes the aluminum alloy air fork to maximize comfort. Experience a whole new world of cycling confidence!
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Headlight;
Pedals, saddle & seat post;
Product manual;
Screws and tools for assembly.
2023 Fully Upgrade
1000W
Hub Motor
48V 20AH
Lithium Battery
120MM
Hydraulic Suspension Fork
180MM
Hydraulic Brakes
26" * 4"
All Terrain Fat Tires
5'9" - 6'4"
Recommended Height
1/2 - Electronic System
Upgraded 1000W Hub Motor
Eahora designs the internal structure of the motor. All the while, the 1000 Watt high-speed brushless motor can reach maximum speed within seconds.
Max Torque: 90N.m
Gradeability: 25°
2/2 - Electronic System
48V 20Ah Battery
A good battery is vital to the electric bike, our battery to ensure long life and high safety. Removable, hidden in the frame, and easy to install. 8- 10 hours to charge with original 2A charger.
Throtte Mode Range: 28 - 31 Miles
PAS Mode Range: 56 - 62 Miles
Size and Geometry
Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM
Ⓐ - Total Length: 76.0" or 193CM
Ⓑ - Wheel Base: 46.4" or 118CM
Ⓒ - Seat Height: 33.7" - 39.4" or 86CM - 100CM
Ⓓ - Handlebar Height: 41.3" or 105CM
Ⓔ - Rim Diameter: 24" or 58CM
Ⓕ - Standover: 30.71" or 78CM
Ⓖ - Reach Distance: 16.5" or 42CM
Ⓗ - Chain Stay Length: 19.7" or 50CM
Ⓘ - Seat Angle: 72°
Ⓙ - Seat Tube Length: 13.8" or 35CM
Ⓚ - Bike Width: 26.4" or 67CM
Ⓛ - Top Tube Length: 21.7" or 55CM
Technical Specifications
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Bike Class
Class 3 ebike with throttle and pedal asssit functions.
Bike Weight
87 lbs in total with the battery.
Range per Charge
28- 31 miles on throttle mode. 56 - 62 miles on pas mode.
Payload Capacity
Recomend rider weight within 280lbs.
ELECTRONIC SYSTEM
ELECTRONIC SYSTEM
Motor
1000W DC hub motor, cassette; Max torque: 90N.M.
Battery
48V 20AH (960WH) lithium battery.
Controller
48V, 23.5 ± 1A; 12MOS.
Charger
54.6V ~ 2A smart charger; input 100-240V 50/60HZ.
Display
3" portrait color display(KD986), IP65 Waterproof; brightness: 100CD/M2.
Lights

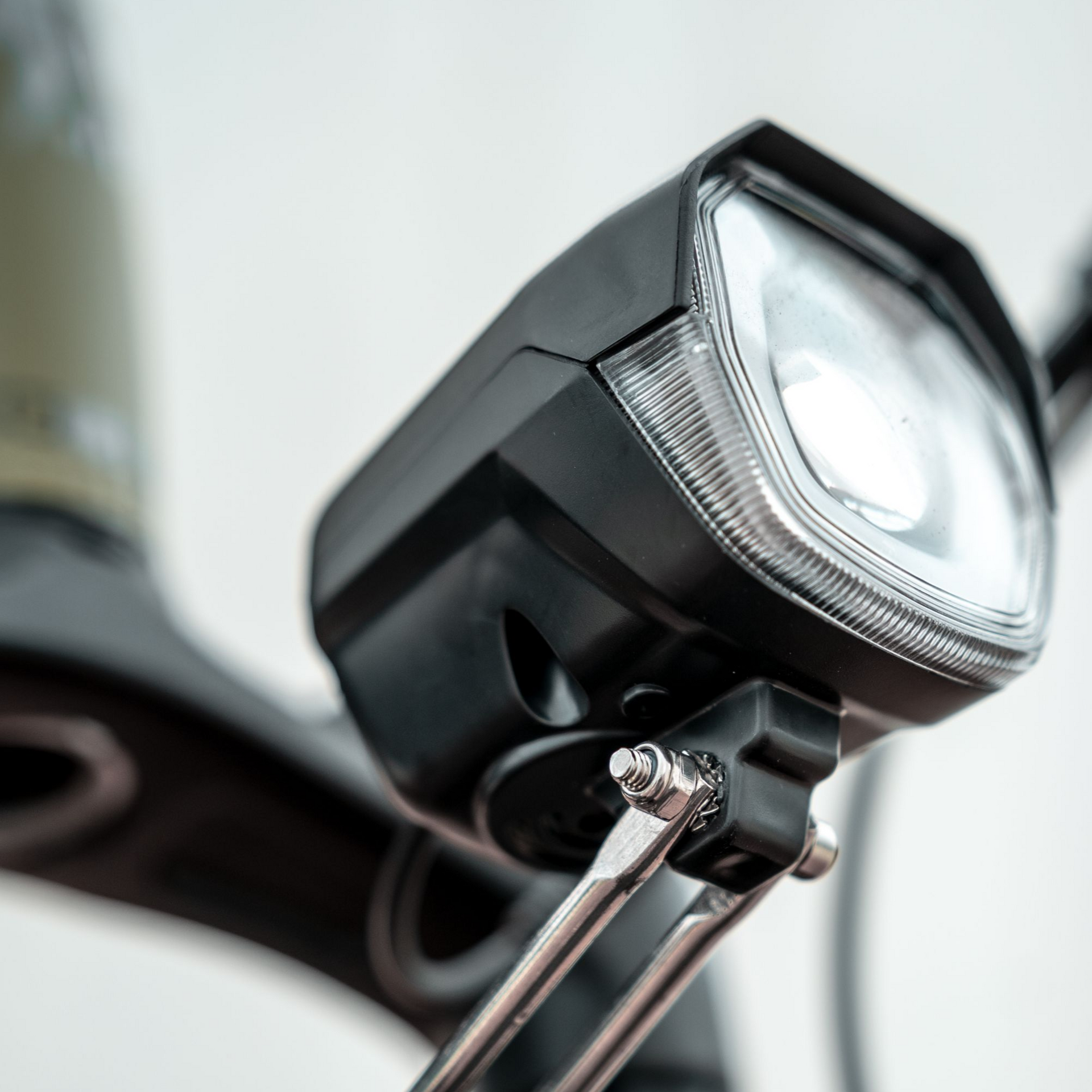

Front light 48V LED light; rear relfector.
Wiring
Water resistant connectors and wiring harness.
BICYCLE COMPONENTS
BICYCLE COMPONENTS
Frame
6061 aluminum; frame size: 26" * 21.5".
Brakes
180mm front and rear hydraulic disc brakes.
Brake Levers
Aluminum alloy comfort grip levers with motor cutoff switch.

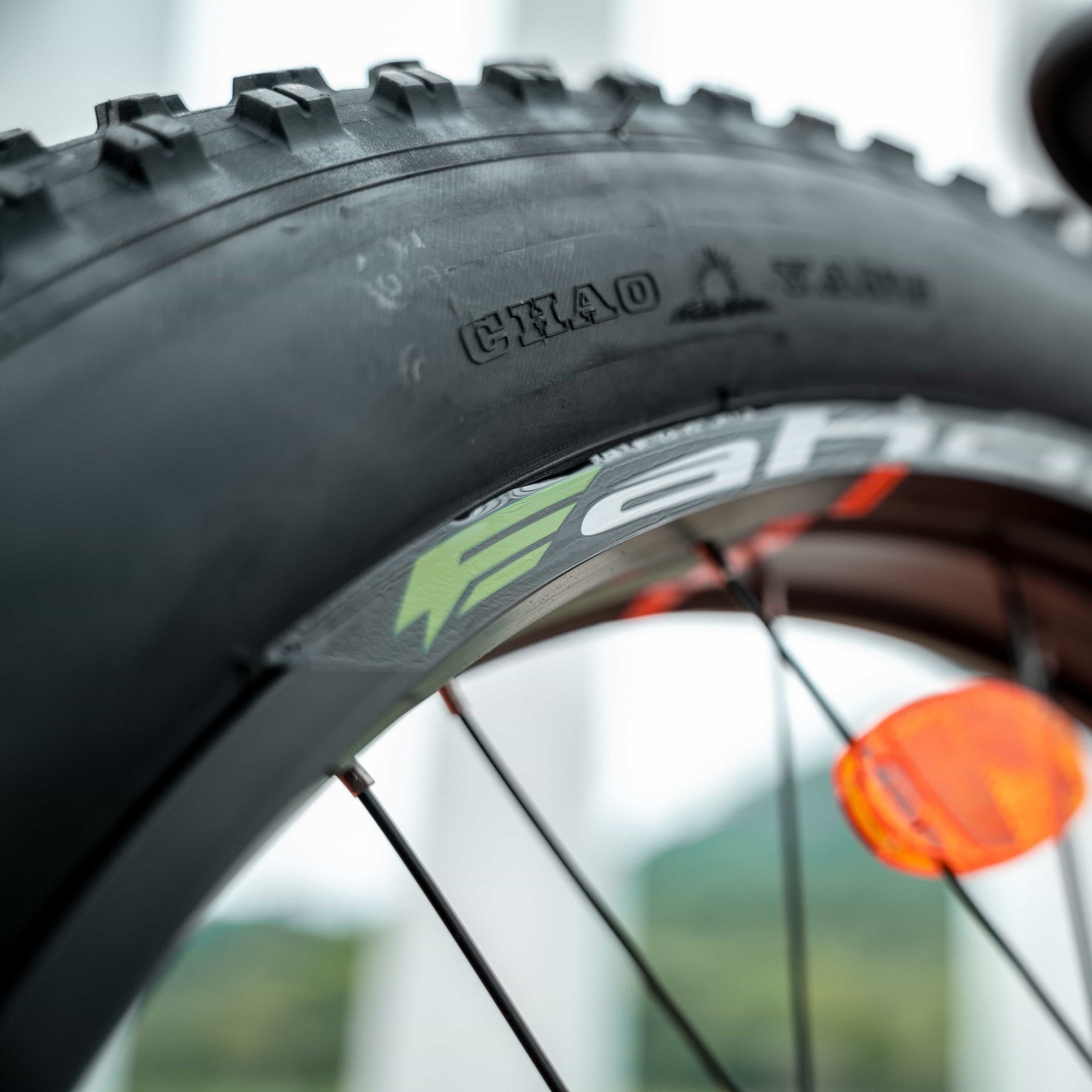

Tires
26" * 4.0" CHAOYANG tires; tire pressure marked on sidewall.
Fork
Hydraulic suspension alloy fork, adjustable.
Rear Suspension

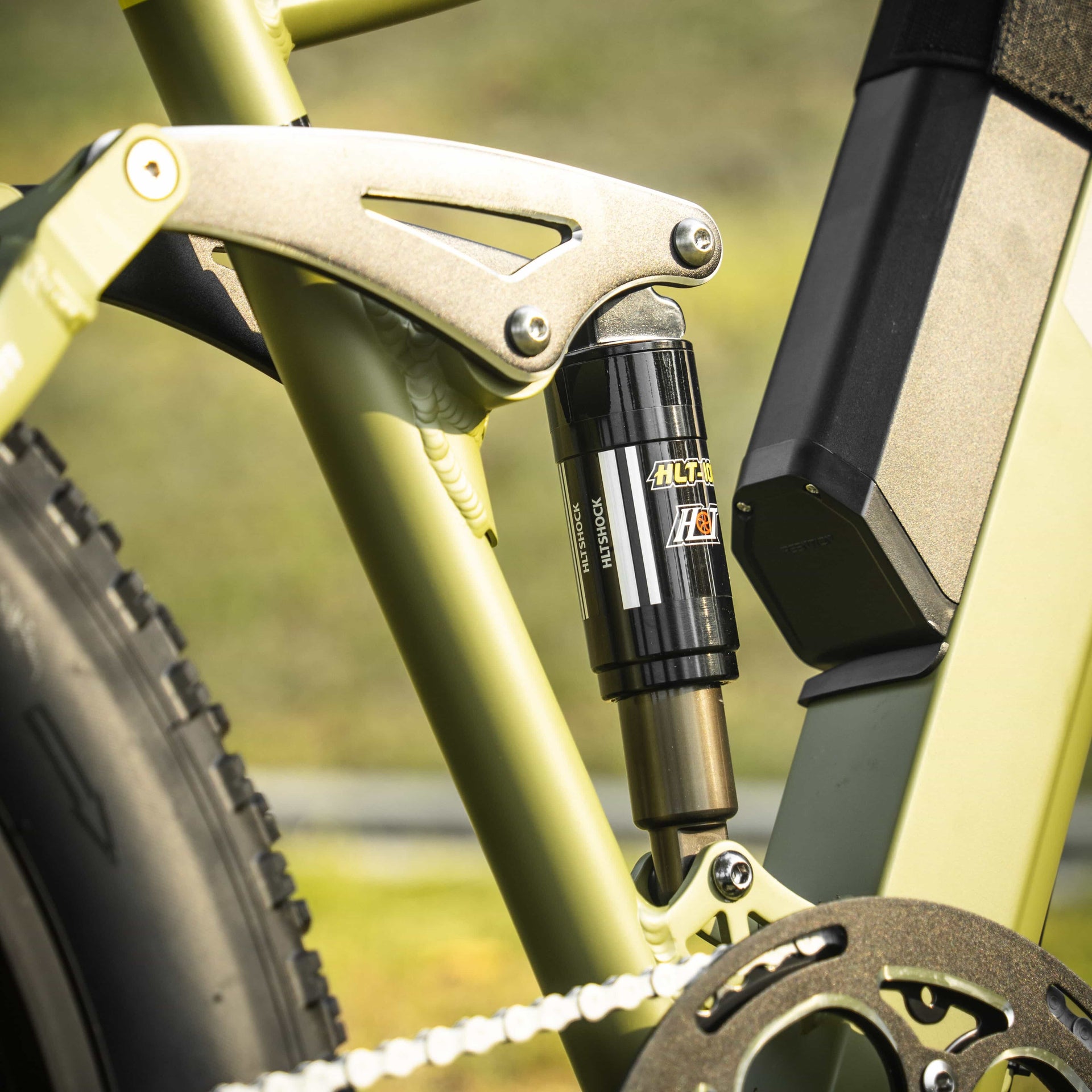

Spring suspension(HLT-100).
Chain
KMC chain.
Crank Set

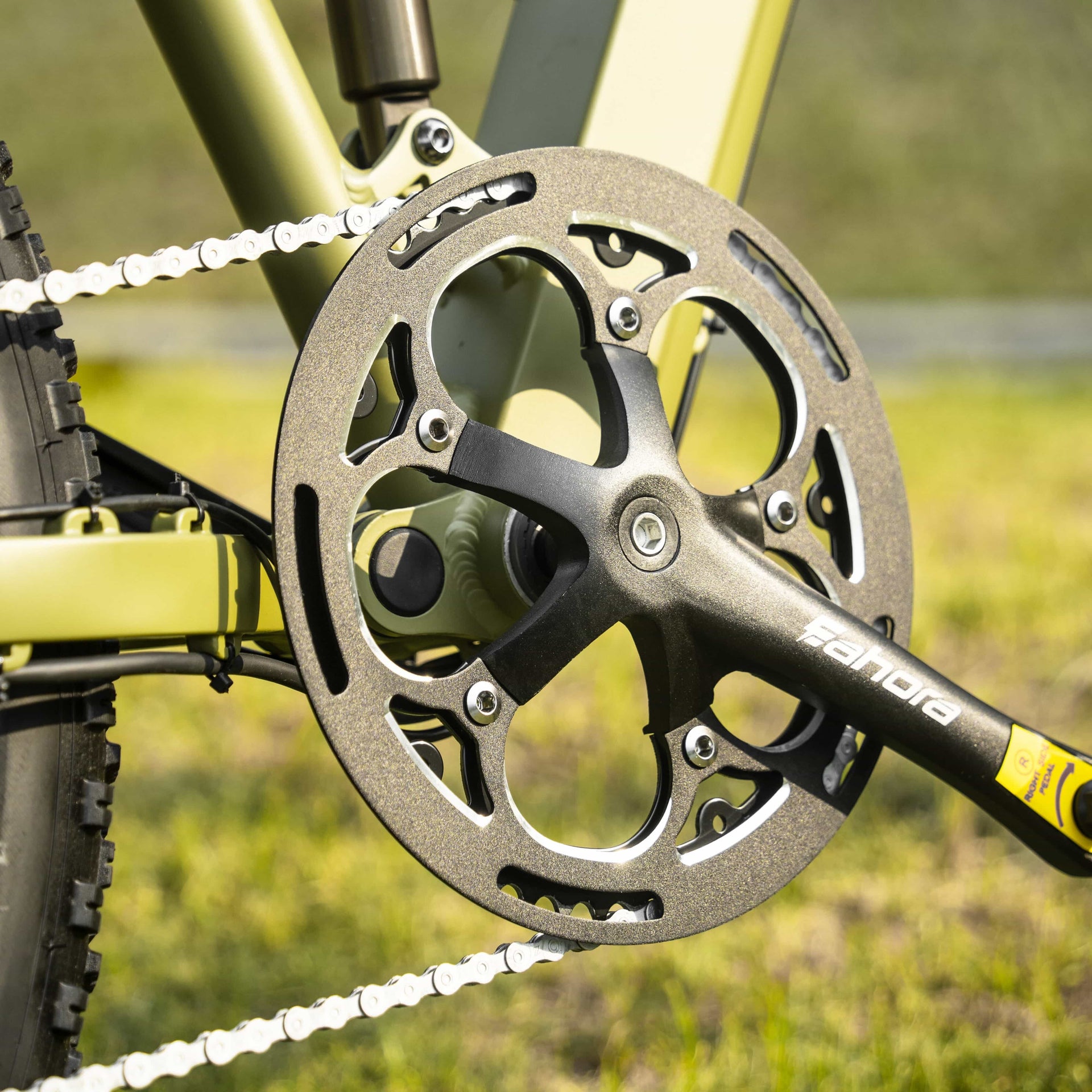

52T * 170MM, dual-sided chainring guard.
Shifters
LTWOO(SL-V5009-9W) 9-speed.
Derailleur
LTWOO(RD-V5009-M) 9-speed.

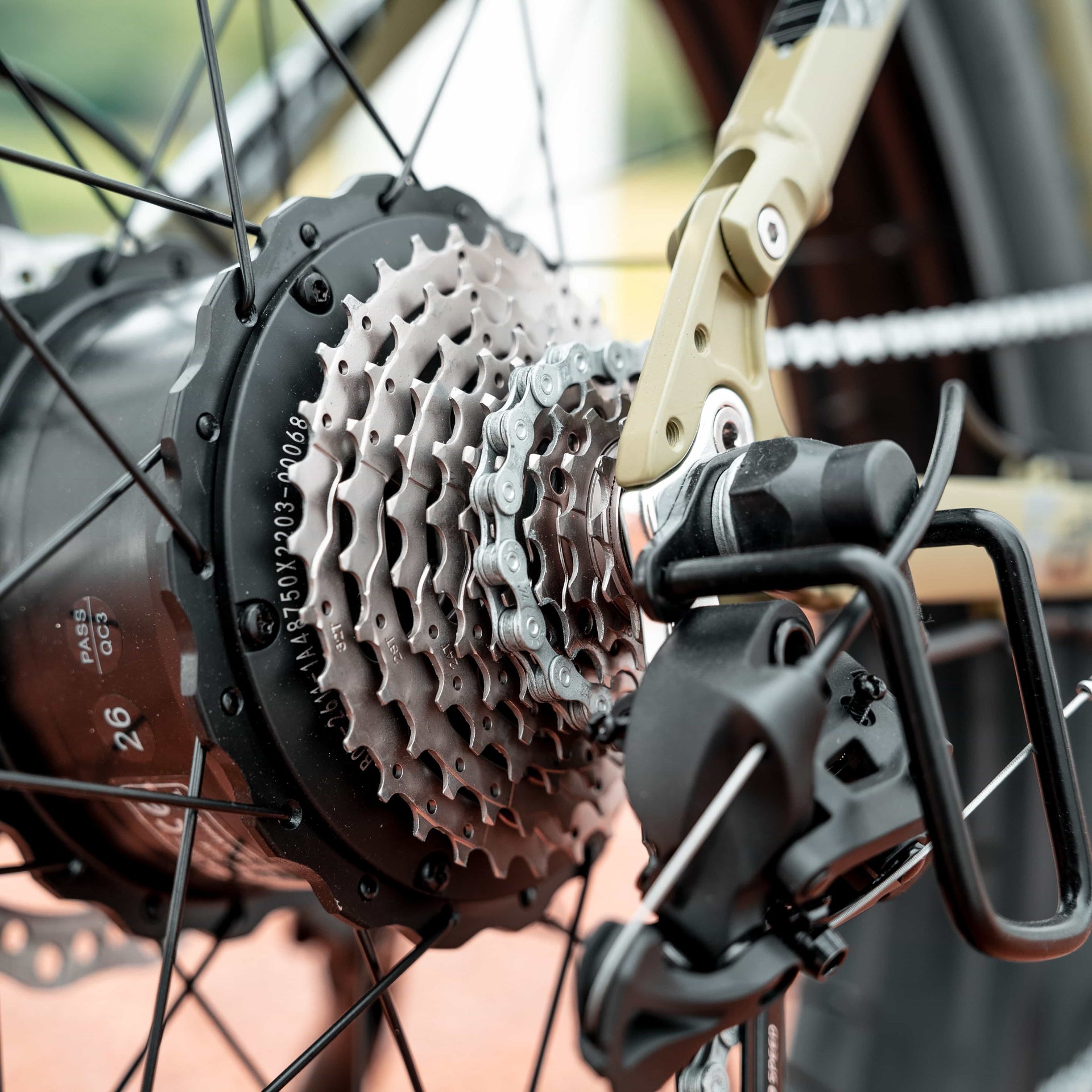

Freewheel
LTWOO, 9-speed, 11-32T.
Grip
Comfort rubber ergo grips.
Handlebar
Rise handlebar.
Pedals
Wellgo(B087B) aluminum pedals with reflectors, polymer bearing.
Headset
Intergrated threadless headset.
Rack
None.
Kickstand
Aluminum leg with durable plastic cover, adjustable.
Fenders
None.
Saddle
Comfort leather saddle.
Rims
Aluminum 36H spoke wheel.
Seatpost
Aluminum seapost with clamp.
Bell
Metal.
