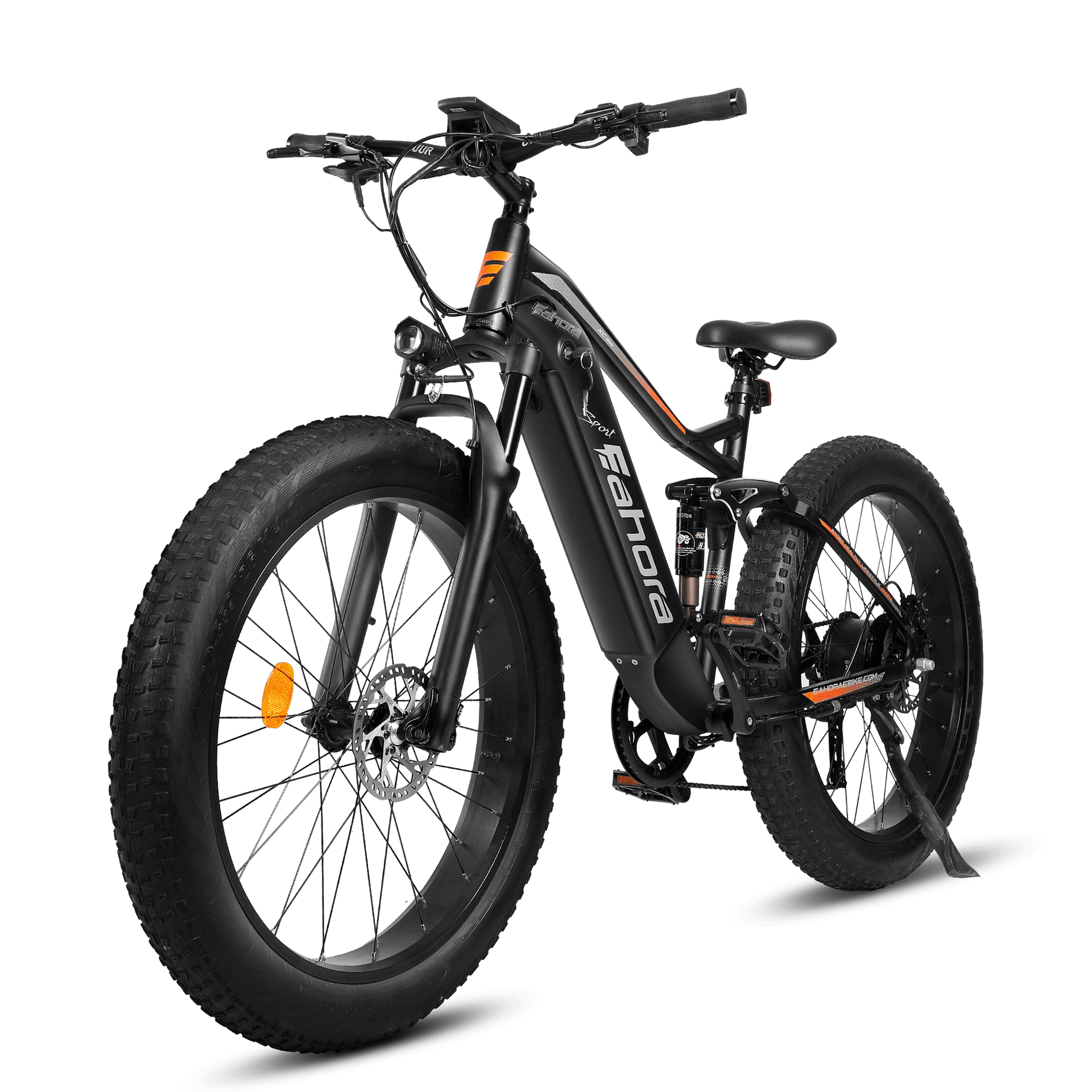

Eahora XC300 Max (Black)
ABOUT XC300 Max
Eahora XC300 has upgraded to Special edition with 750W motor & 48V 20Ah(960Wh) battery, which possesses an impressive range of 60+ miles.A great all-terrain conqueror by virtue of practical 160mm hydraulic brakes and full suspension.
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & quick release;
Pedals, saddle & seat post;
Screws and tools for assembly.
1/2 - Electronic System
Bafang Hub Motor
The upgraded Bafang H550 motor provides stronger power and faster speed. With a max torque of 85N/M, XC300 helps you conquer any terrain easily. Easily suffice your daily commute and adventurous riding.
2/2 - Electronic System
48V 20Ah Battery
XC300 Max has an embedded removable battery. The built-in 20Ah battery efficiently improves the range, stability and safety. Anti-fall battery dual locks design to ensure not fall to ground when remove it out.
Throtte Mode Range: 25 - 26 Miles
PAS Mode Range: 26 - 28 Miles
- 1. MOTOR
- 2. BATTERY
Size and Geometry
Recommended Rider Height: 5'9" - 6'4" or 175CM - 195CM
Ⓐ - Total Length: 76.8" or 195CM
Ⓑ - Wheel Base: 47.2" or 120CM
Ⓒ - Seat Height: 35.0" - 41.7" or 89CM - 106CM
Ⓓ - Handlebar Height: 44.5" or 113CM
Ⓔ - Rim Diameter: 22.8" or 5CM
Ⓕ - Standover: 29.1" or 74CM
Ⓖ - Reach Distance: 18.5" or 47CM
Ⓗ - Chain Stay Length: 19.7" or 50CM
Ⓘ - Seat Angle: 73.6°
Ⓙ - Seat Tube Length: 18.1" or 46CM
Ⓚ - Bike Width: 28.7" or 73CM
Ⓛ - Top Tube Length: 21.7" or 55CM
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Class 3 ebike with throttle and pedal asssit functions.
66.1lbs in total with the battery.
Range per Charge
25 - 26 miles on throttle mode. 26 - 28 miles on pas mode.
Recomend rider weight within 280lbs.
BAFANG(H550) 750w DC hub motor, cassette. Max torque: 85N.M
48V 20AH 960WH lithium battery; Anti-fall battery dual locks.
48V, 22 ± 0.5A, 9MOS.
54.6V ~ 3A smart charger, Input 100-240V 50/60HZ.
2.5" Portrait Color Display(YL-91F-V), IP65 Waterproof. Brightness: 90CD/M2.
Front Light 48V LED light, with rear relfector.
Water resistant connectors and wiring harness.
6061 aluminum; frame size: 26" * 17".
160mm front and rear hydraulic disc brakes.
Aluminum alloy comfort grip levers with motor cutoff switch.
26" * 4" CST tires, tire pressure marked on sidewall.
Air suspension alloy fork, adjustable.
42T * 170MM, dual-sided chainring guard.
Comfort rubber ergo grips.
Wellgo(B249DU) aluminum pedals with reflectors, polymer bearing.
Intergrated threadless headset.
Aluminum leg with durable plastic cover, adjustable.
Comfort leather saddle.
Aluminum 36H spoke wheel.
Aluminum seapost with clamp.
Integrated electric horn.
