Eahora FT-01 (Black)
Meet Eahora FT-01, merge a vintage motorcycle frame design with contemporary tech, creating an eye-catching blend of style and nostalgia. The hydraulic spring suspension fork has a longer life and provides plenty of cushion for typical road conditions and light off-roading. Get ready for thrills and chills every time you ride.
WHAT'S IN THE PACKAGE
Delivered with 85% assembled:
Ebike & battery;
Original charger & adapator;
Front tire & Headlight;
Screws and tools for assembly.
1/3 - Electronic System
1000W Brushless Motor
1000W brushless geared hub motor provides faster speed, guarantees longer life and ensures less maintenance. With its impressive power output, FT-01 delivers a potent boost to your rides, effortlessly propelling you forward with speed and ease.
Gradeability: 15° - 30°
2/3 - Electronic System
48V 20Ah Battery
The large-capacity 48V20AH waterproof removable lithium battery provides rich and long-lasting high power output for riding, ensuring longer life and excellent performance. It can travel about 42mile in pas mode so that it can meet travel or daily commute needs. Removable battery makes charging more convenient whether you are at home or in the office.
Throtte Mode Range: 28 Miles
PAS Mode Range: 43 Miles
3/3 - Electronic System
Color LCD Display
The bike display allows you to easily and intuitively view the data on the panel.It will truly reflect the battery power of your bicycle, display parameters such as speed, and has high practicability. Even in bright sunlight, the display is easy to read, providing the rider with accurate and reliable ride feedback.
Pedal Assist Level: 0 - 3 Levels (default)
Additional Riding Modes: Walk, Cruise control
- 1. MOTOR
- 2. BATTERY
- 3. DISPLAY

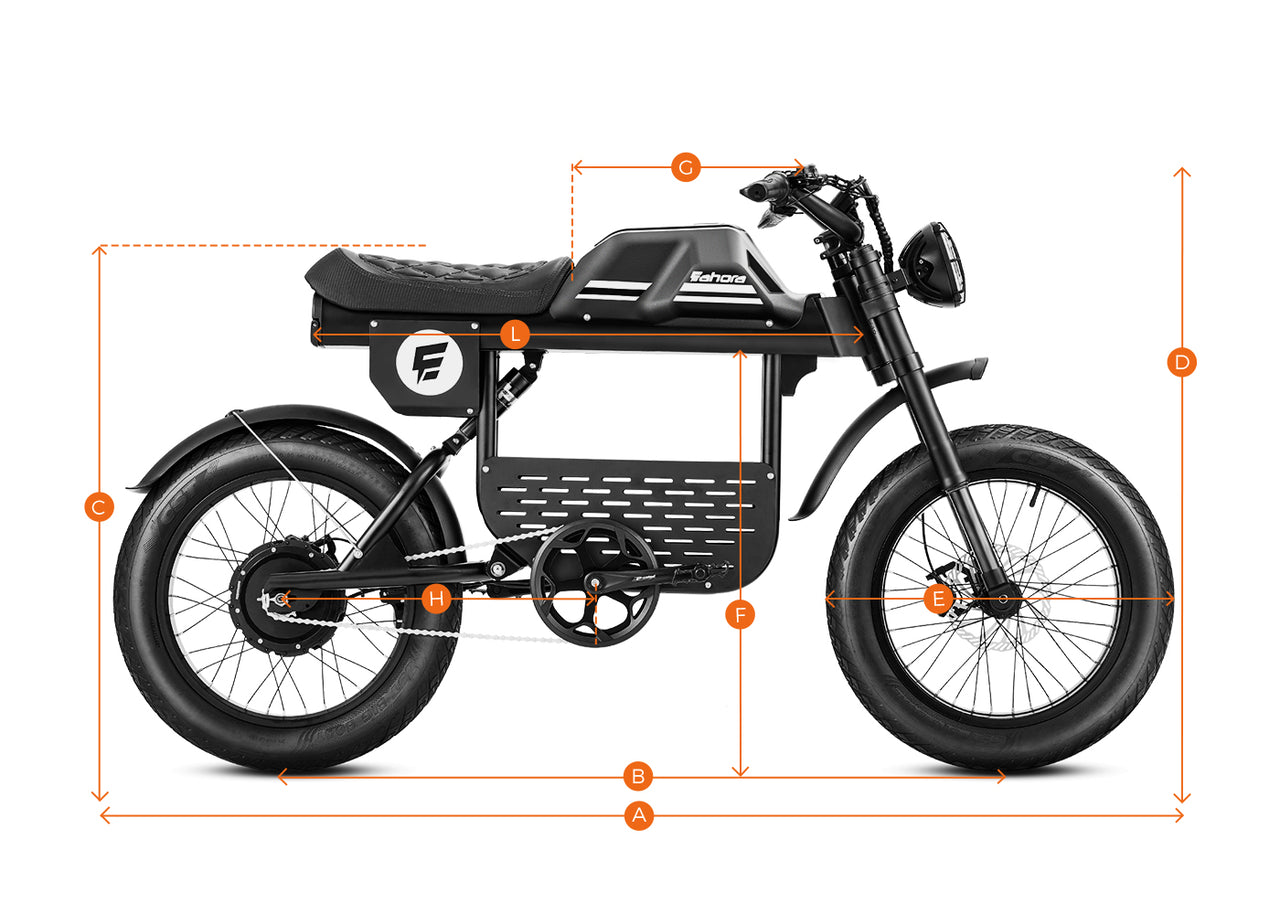

Size and Geometry
Recommended Rider Height: 5'5" - 6'3" or 165CM - 190CM
Ⓐ - Total Length: 68.1" or 173CM
Ⓑ - Wheel Base: 45.3" or 115CM
Ⓒ - Seat Height: 33.5" or 85CM
Ⓓ - Handlebar Height: 45.3" or 115CM
Ⓔ - Rim Diameter: 16.4" or 42CM
Ⓕ - Standover: 27.2" or 69CM
Ⓖ - Reach Distance: 19.7" or 50CM
Ⓗ - Chain Stay Length: 19.7" or 50CM
Ⓚ - Bike Width: 29.5" or 75CM
Frequently Asked Questions
The seat height is not adjustable, what rider height do you recommend?
The seat height is 33.5 "or 85cm, we recommend rider height at 5'5" - 6'3 "or 165 - 190cm.
Is it hard to assemble by myself?
FT 01 is delivered with 85% assembled, we also make a detailed assembly video for you.
What type of brakes of FT-01?

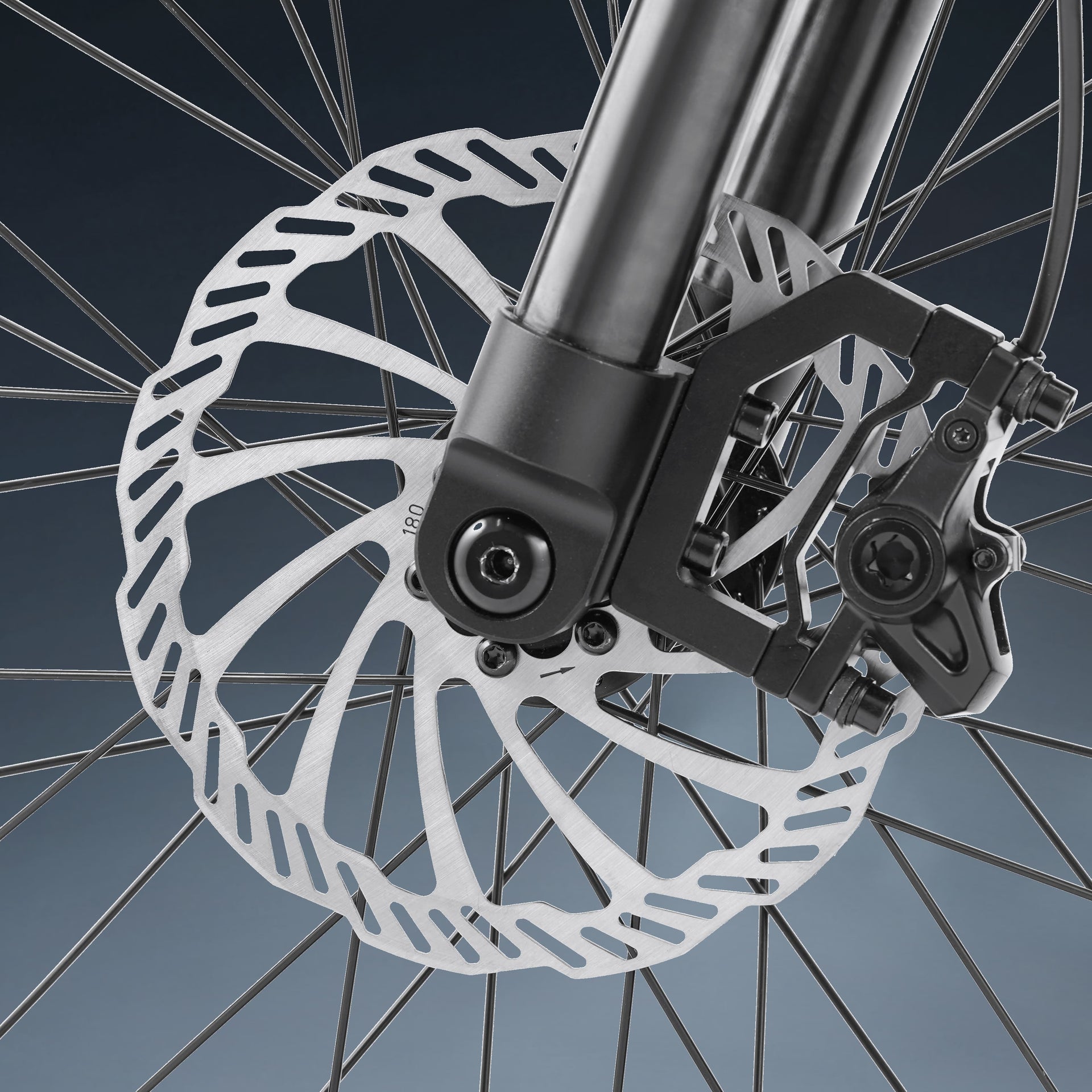

FT-01 features 180mm hydraulic brakes that are not only smooth to operate, but also bring the bike to a swift stop with less force and reduced jerk.
What’s the weight of the battery? Can I remove it from the bike to charge?
The weight of the battery is 13.1 lbs and it is conveniently removable, allowing you to easily extract it for charging purposes.
How long need to fully charge the battery?
The charger is 54.6V 3A. It usually takes 6-8 hours to charge the battery from 0% to full.
Can I add a rear rack on FT-01?

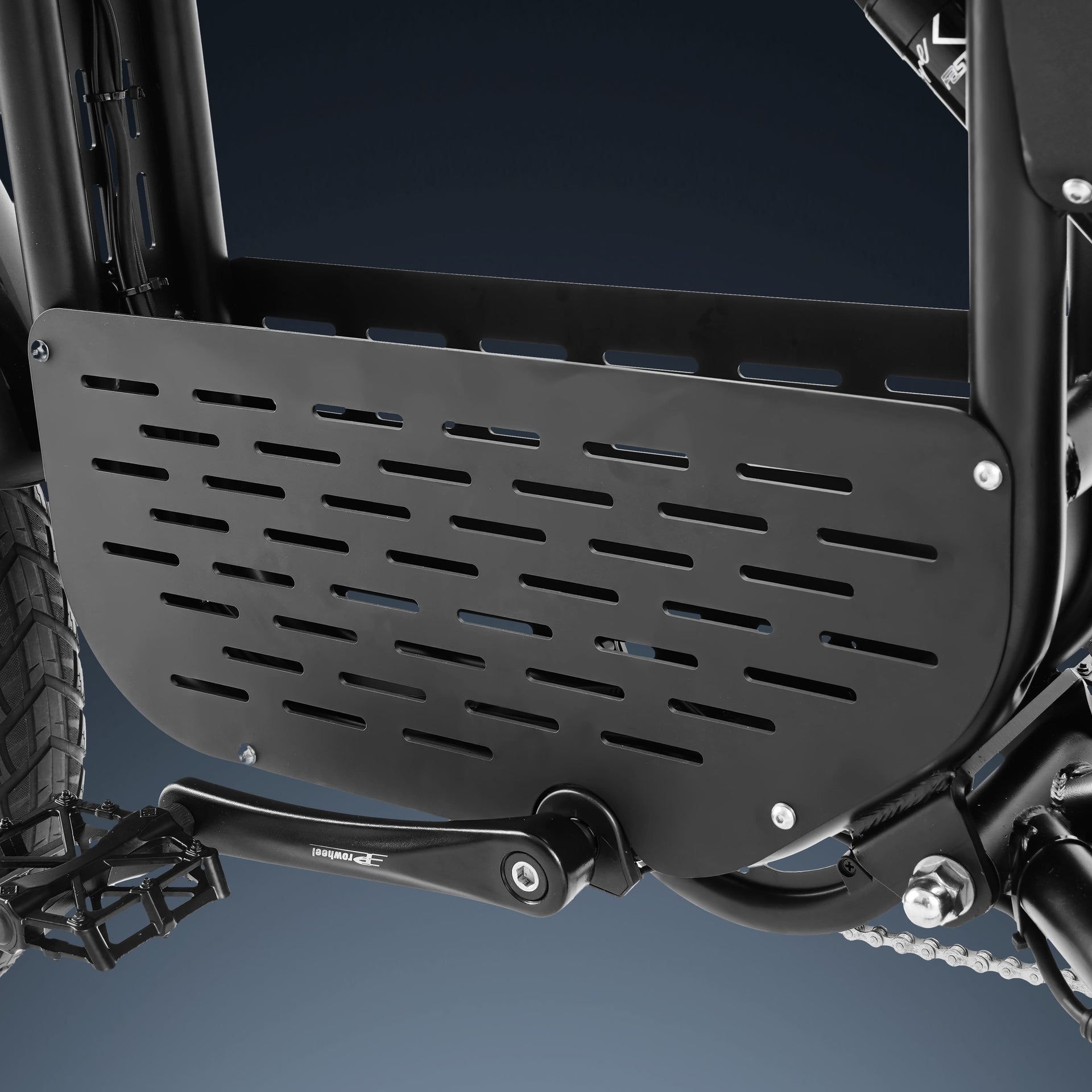

Due to frame design, we have no customized rear rack for FT-01, while the bottom bracket has a load capacity of 60LBS, which helps to carry for you..
Ask a Question
To ensure uninterrupted suppluying and shipping, some parts may differ from those listed. Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Class 3 ebike with 3-level pedal assist and throttle.
90.6 lbs in total with the battery. The battery weighs 13.1 lbs.
Range per Charge
28 miles on throttle mode. 43 miles on pas mode.
Recomend rider weight within 330lbs.
1000W DC hub motor, cassette.
48V 20AH (960 WH) lithium battery.
48V ~ 3A smart charger.
4" landscape color display(YL-90T-H), IP65 waterproof; brightness: 120CD/M2.

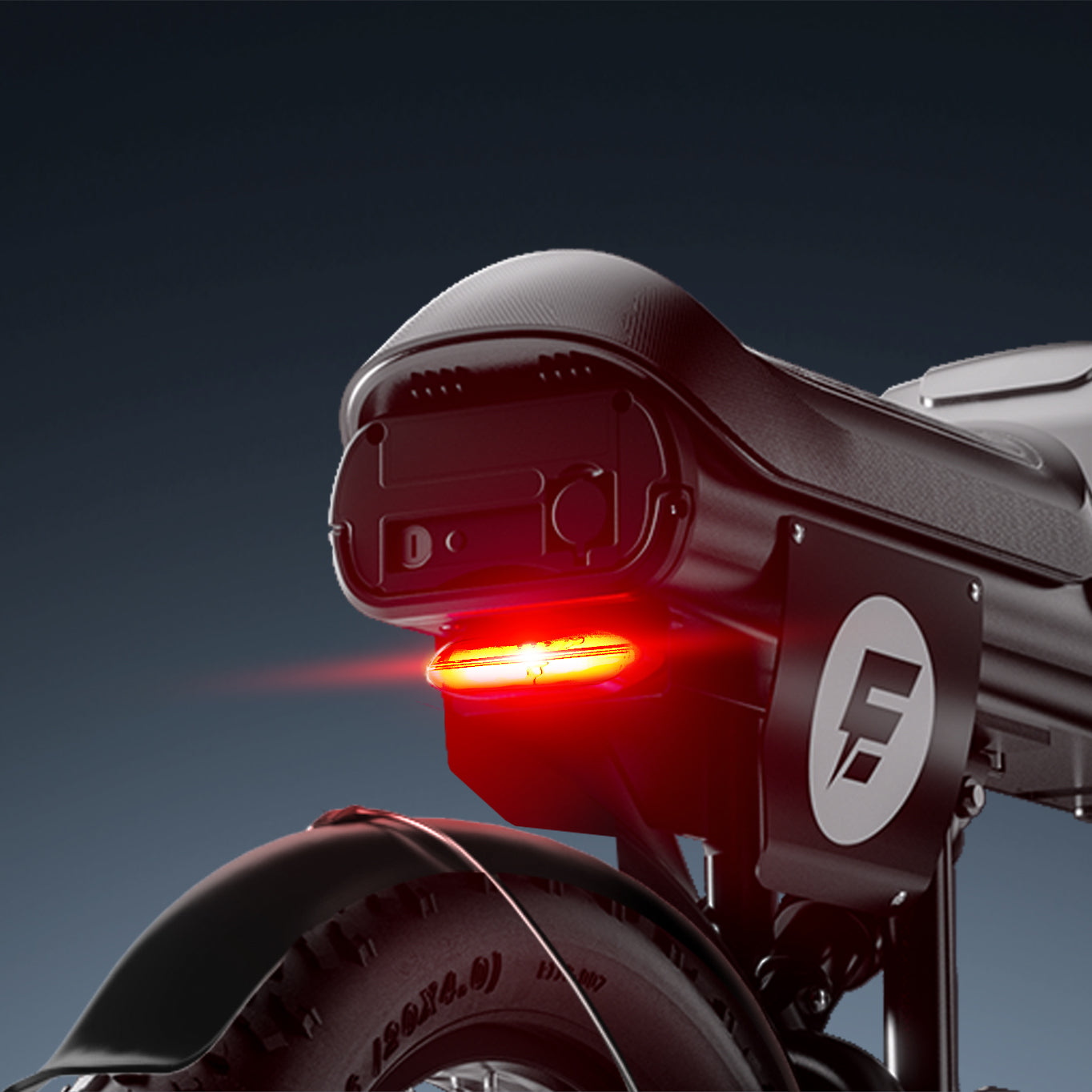

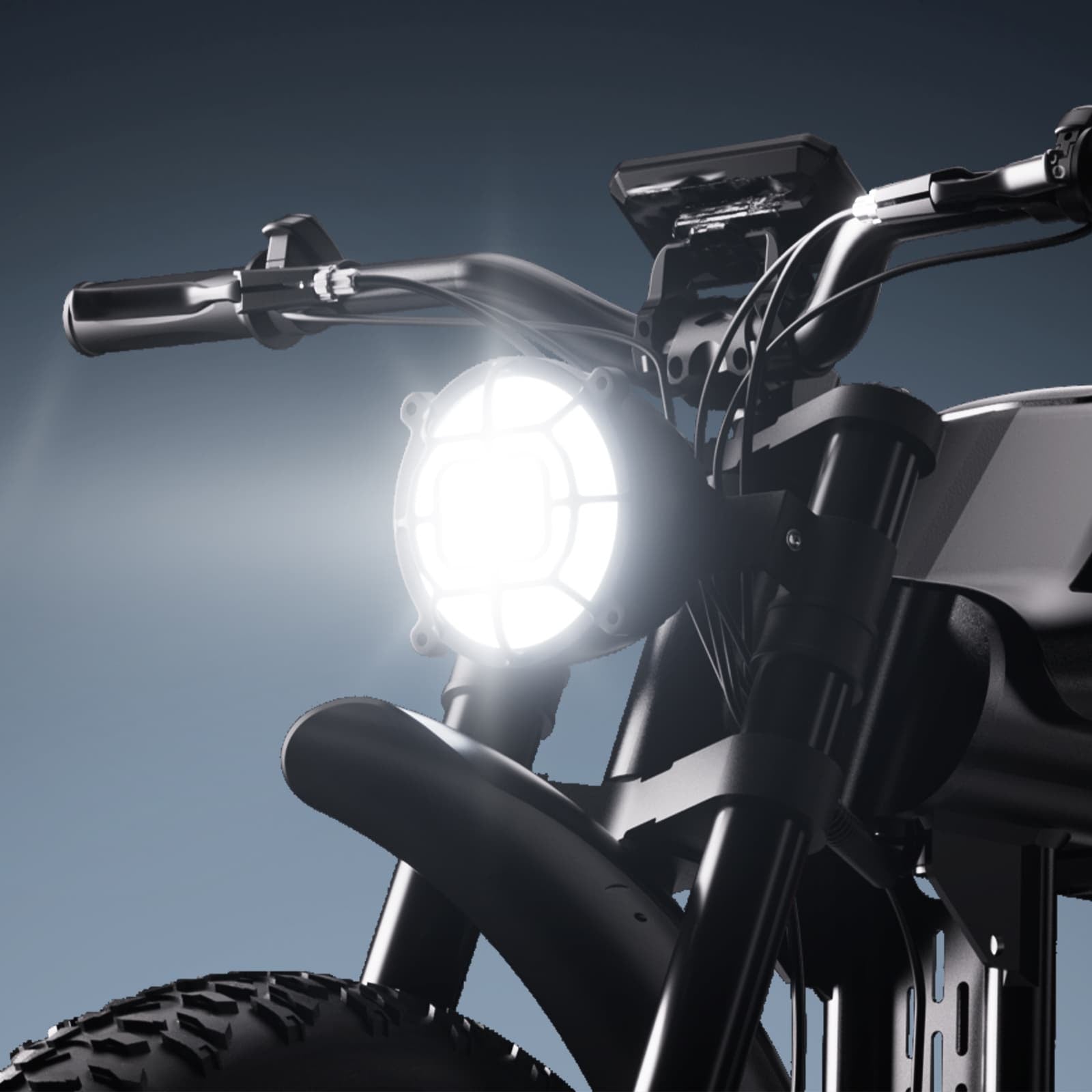

Front light with 48V 12W LED light, rear light with brake signal and turn signal blinker.
Wiring harness with water-resistant connectors.
IP65 Waterproof, including motor battery, display and wiring.
180MM front and rear hydraulic disc brakes.
Aluminum alloy levers with motor cutoff switch.
24" * 4.0" tires; tire pressure marked on sidewall.
100MM travel mechanic suspension alloy fork.
T50 alloy steel rust-resistant chain; 112 segments.
48T * 170MM, single-sided chainring guard.
Comfort rubber ergo grips.
9/16, polymer bearing.
Intergrated threadless headset.
Aluminum alloy kickstand with plastic foot.
Custom fat tire fenders.
Leather fabric, breathable, memory foam.
Aluminum 36H spoke wheel.
Electric horn integrated into the headlight.
