2021 Eahora XC200 E-PAS | Mountain Electric Bike

2021 Eahora XC200 E-PAS | Mountain Electric Bike

Download Display Manual

Warranty: 2 years for the frame; 1 year for battery and motor; 1 year for other bike parts.

Package Included

Bike
Battery and Charger

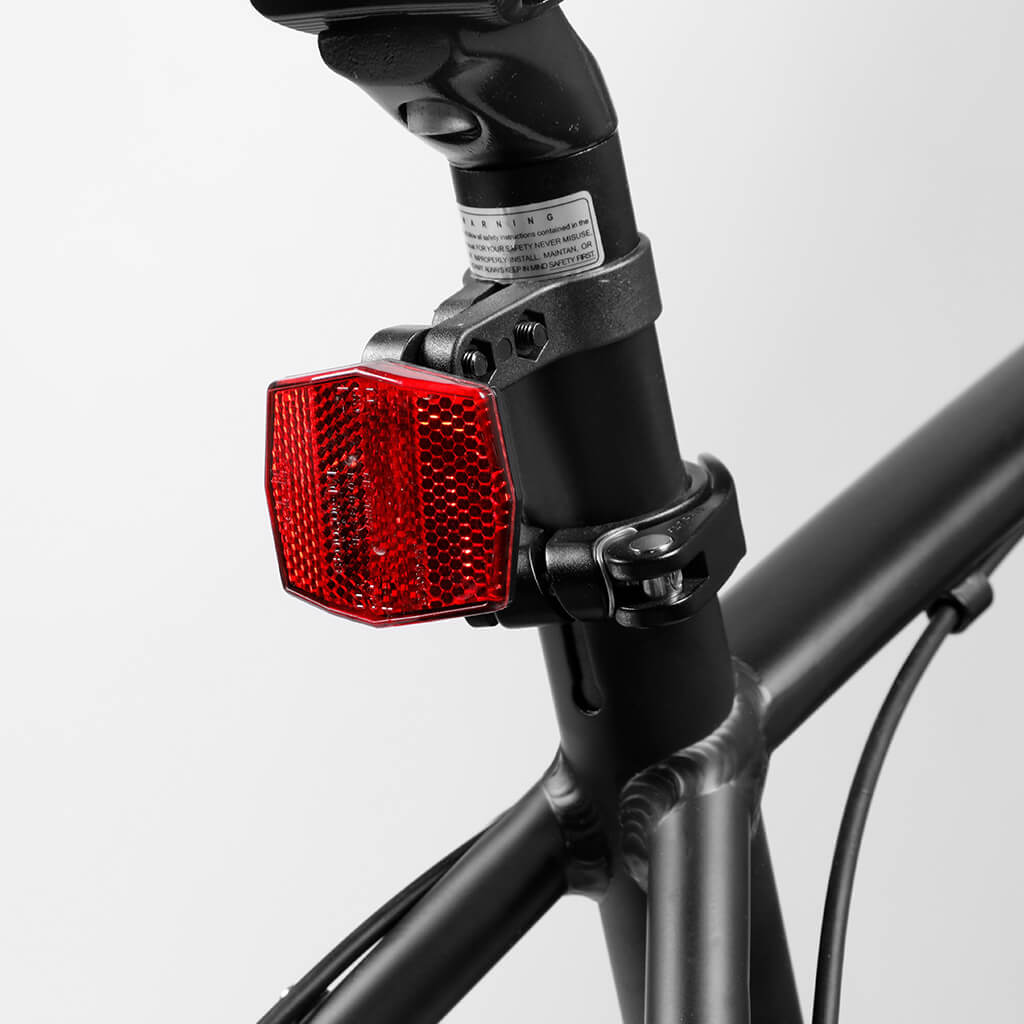

Integrated front light and Tail reflector
User manual
Delivered partly assembled

FEATURES
SPECIFICS
VIDEO REVIEW

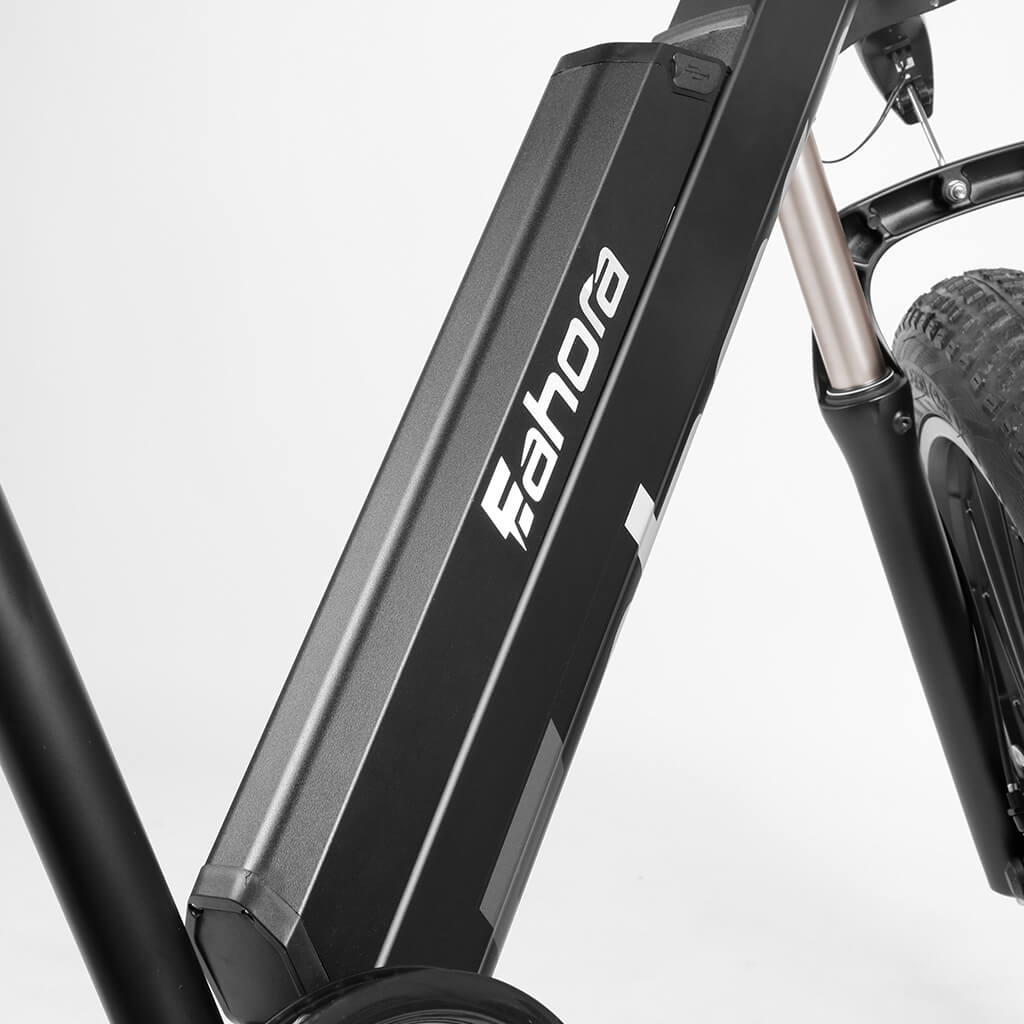

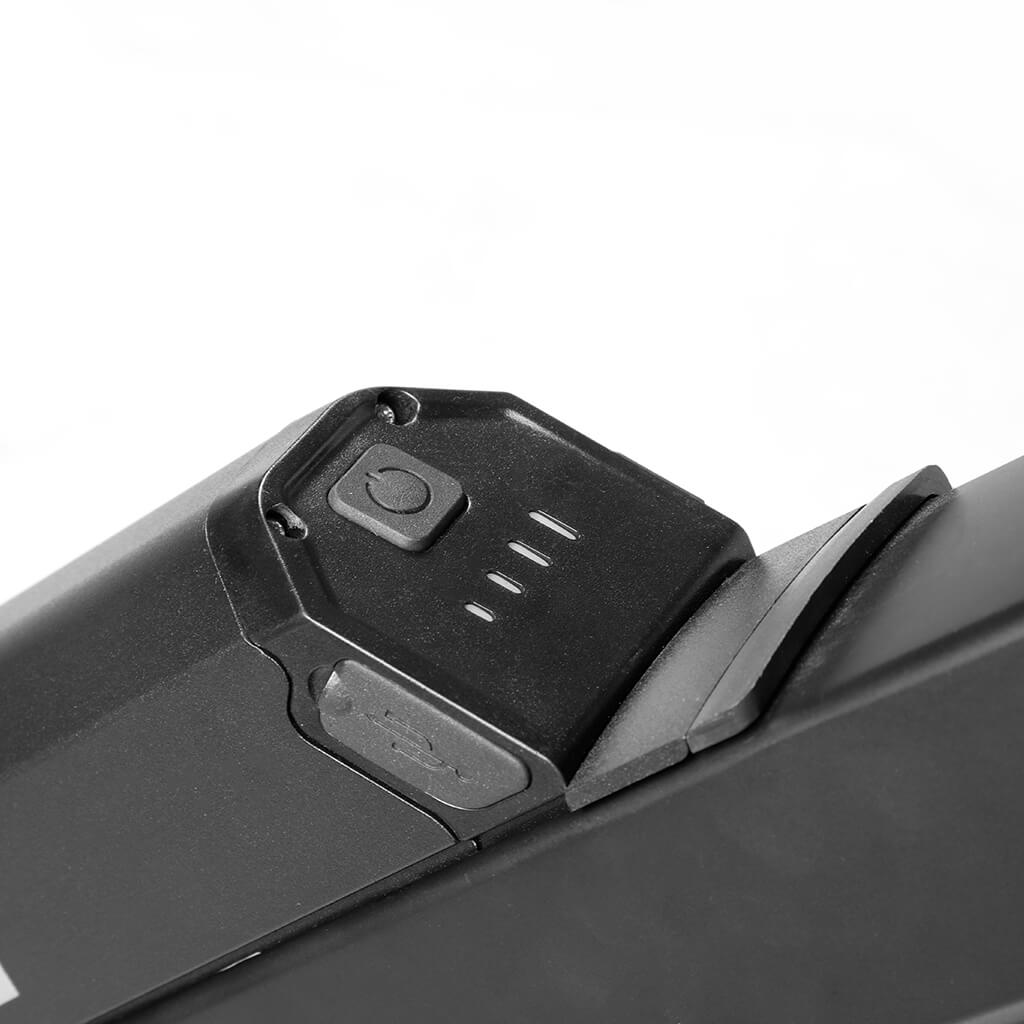

48V 14AH LITHIUM-ION BATTERY WITH SAMSUNG(Since 2021)
Eahora design the internal structure of the motor. With the E-PAS system, it can generate electricity back to the battery when the rider goes downhill or gliding, providing additional energy back to the battery.

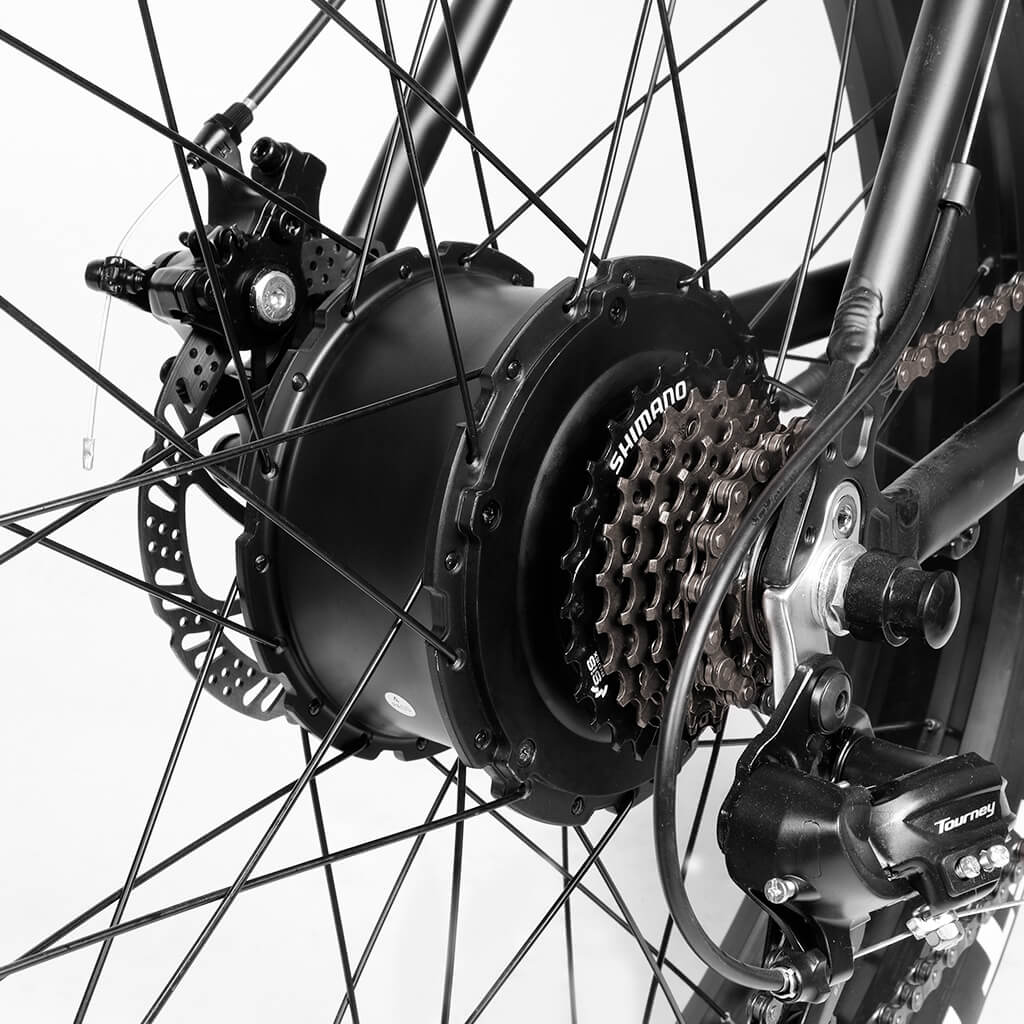

750W HIGH-SPEED BRUSHLESS MOTOR
Eahora's Patented E-PAS regenerative electrical motor drastically improves range by re-charging the battery while traveling downhill, gliding, etc. All the while the 750 Watt high-speed brushless motor can produce speeds up to 26~28 MPH in just 10 seconds

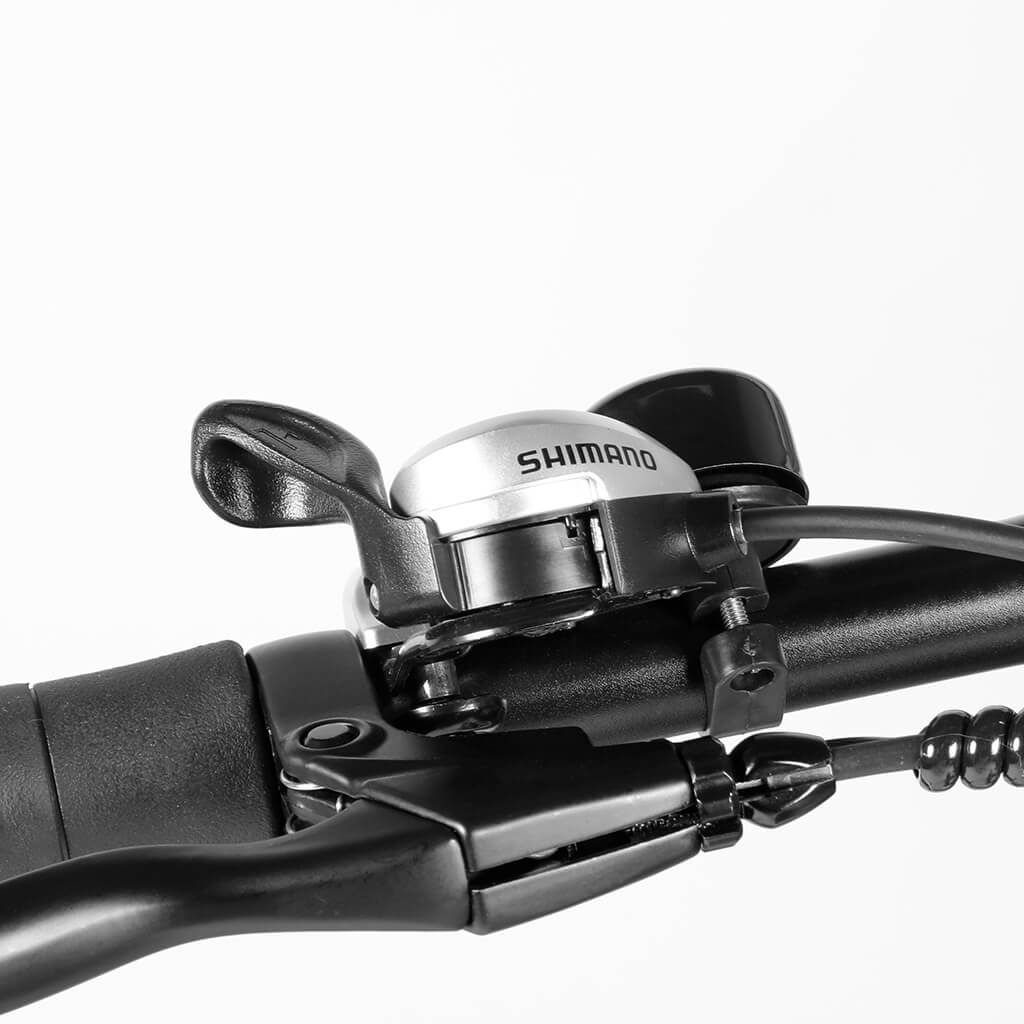

SHIMANO 7 SPEED GEAR SHIFT SYSTEM
A 7-speed bike is a great bike for a person who rides on tricky terrain. It’s main purpose is to let the bike adapt to rough conditions and accommodate inclines, bumps and other difficulties. On a 7-speed bike, the lower gears make it easier to pedal and the higher gears allow for the better movement going downhill. Compared to a 6-speed bike, a 7-speed is preferable for a rider who travels on varying terrain.

80C B&W Screen Display

With waterproof connectors, display the battery bar/ riding speed /riding mileage/motor output power, etc.
Push mode: Use it when you need to push the bike uphill.

Thumb Throttle & Leather Grips

750W of power allows you to accelerate using the throttle without having to pedal.
Leather handlebars bring a more comfortable feeling.

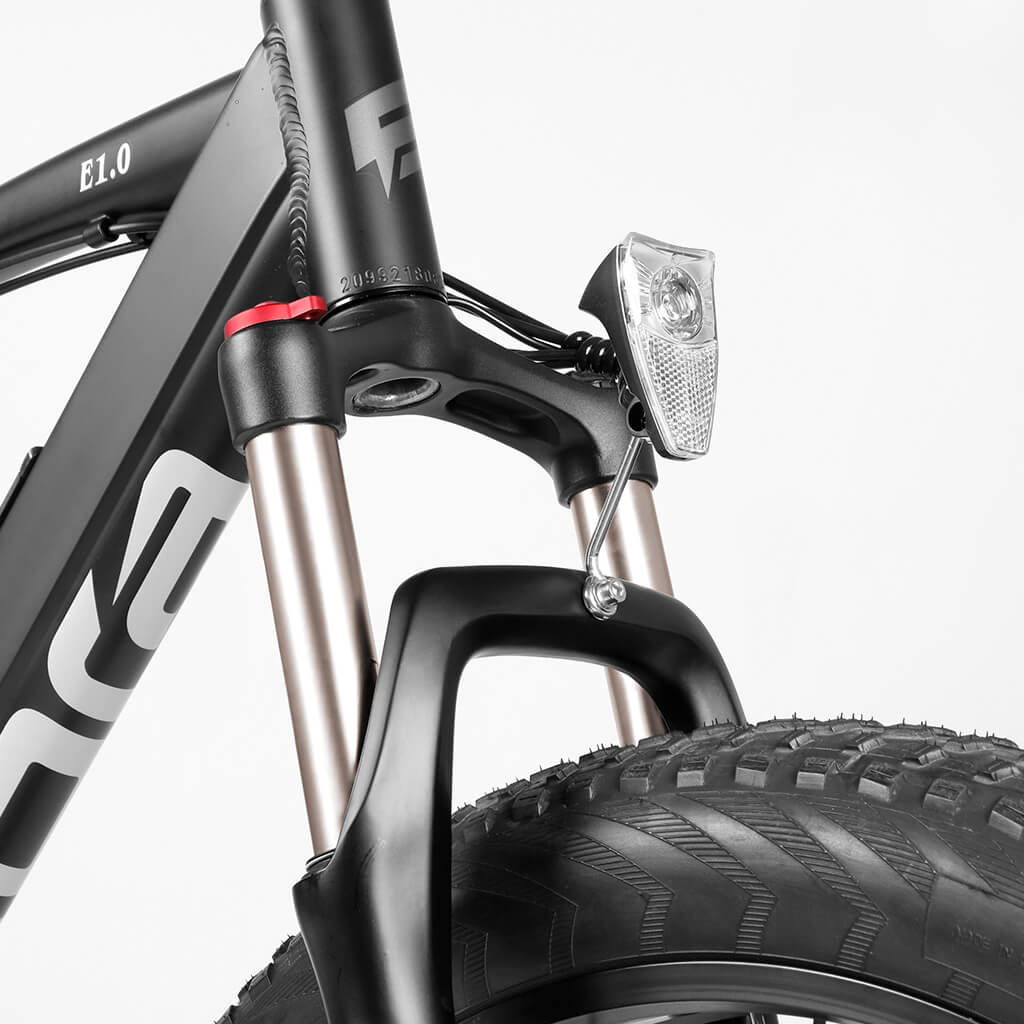

Headlight

5W headlights are ready to illuminate your journey

26inch Puncture-proof Tire

CST "26*4" Fat tires for flat, highway, urban areas.

MOUNTAIN BIKE FEATURES

The cruise control function allows the bike constant speed forward.

CRUISE CONTROL--Free your thumb and keep the bike running at a constant speed.

Electronic

Battery	48V/10.4AH Samsung lithium battery	Charger	US standard 2.0 A smart charger
Motor	750W high-speed brushless motor	Display	80C multi-function digital display
Throttle	Thumb throttle. Three levels gear throttle in the default. Can be adjusted by display	Headlight	5V Bright round light
Battery Charging time	4-5 hours	Mileage	30-35 miles (E-bike) \|60-65 miles (PAS)

E-bike Components

Frame	17.5 inch high-grade rust-proof aluminum alloy frame, foldable	Tires	26*4 inch tires for flat, highway, urban areas
Transmission	Shimano 7 speed + Shimano 370 thumb shifter	Freewheel	Shimano M370 7 speed

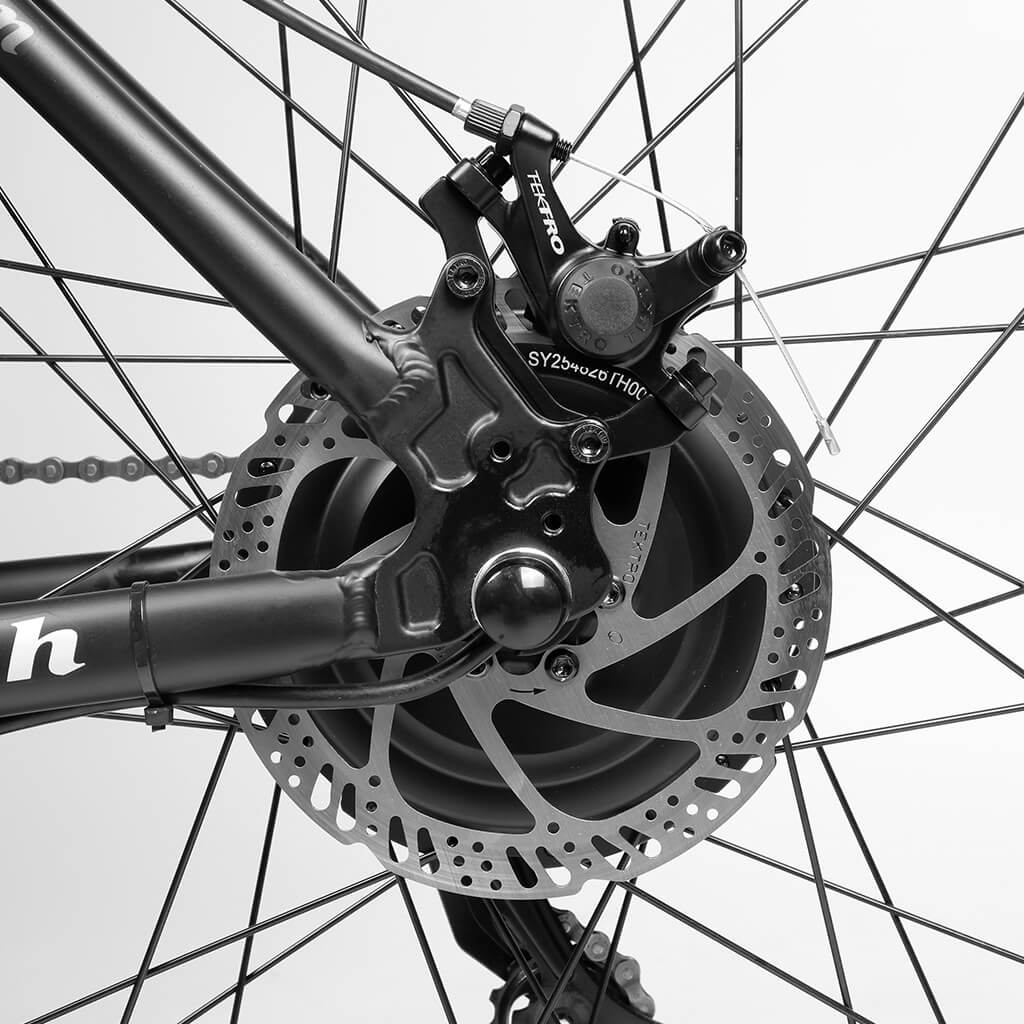

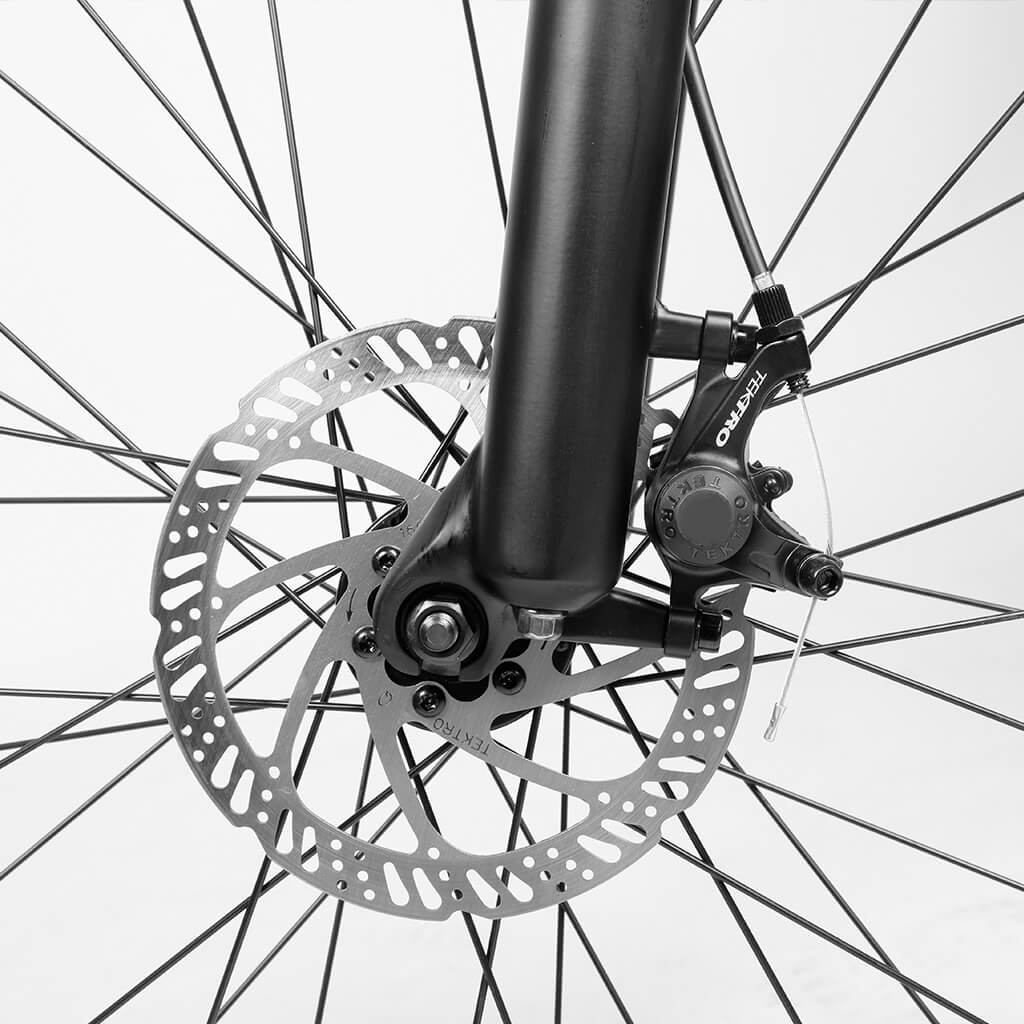

Brake Lever	Aluminum brake lever with mechanical cut-off	Brake	160mm Front and rear hydraulic disc brakes

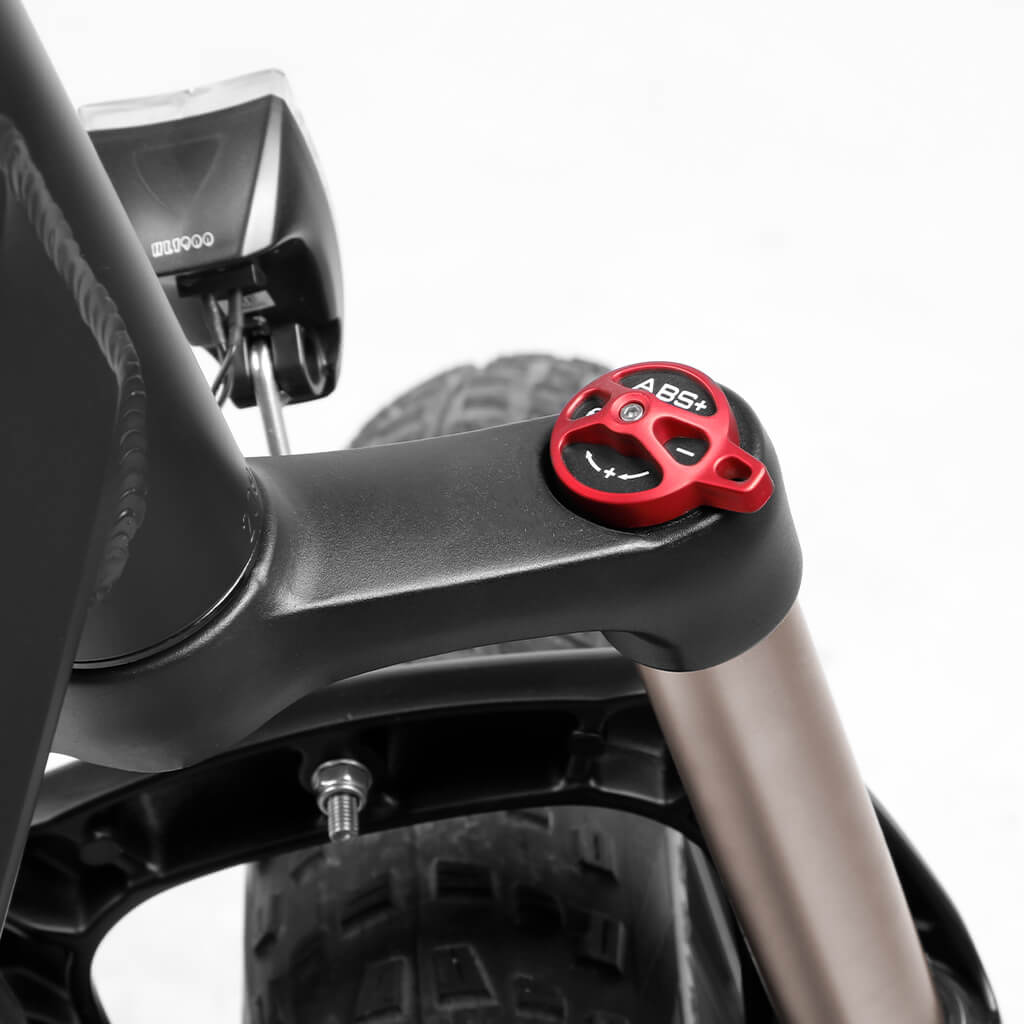

Front Suspension	Aluminum alloy shock, lockable front fork	Rear Suspension	Aluminum alloy hydraulic shock absorber

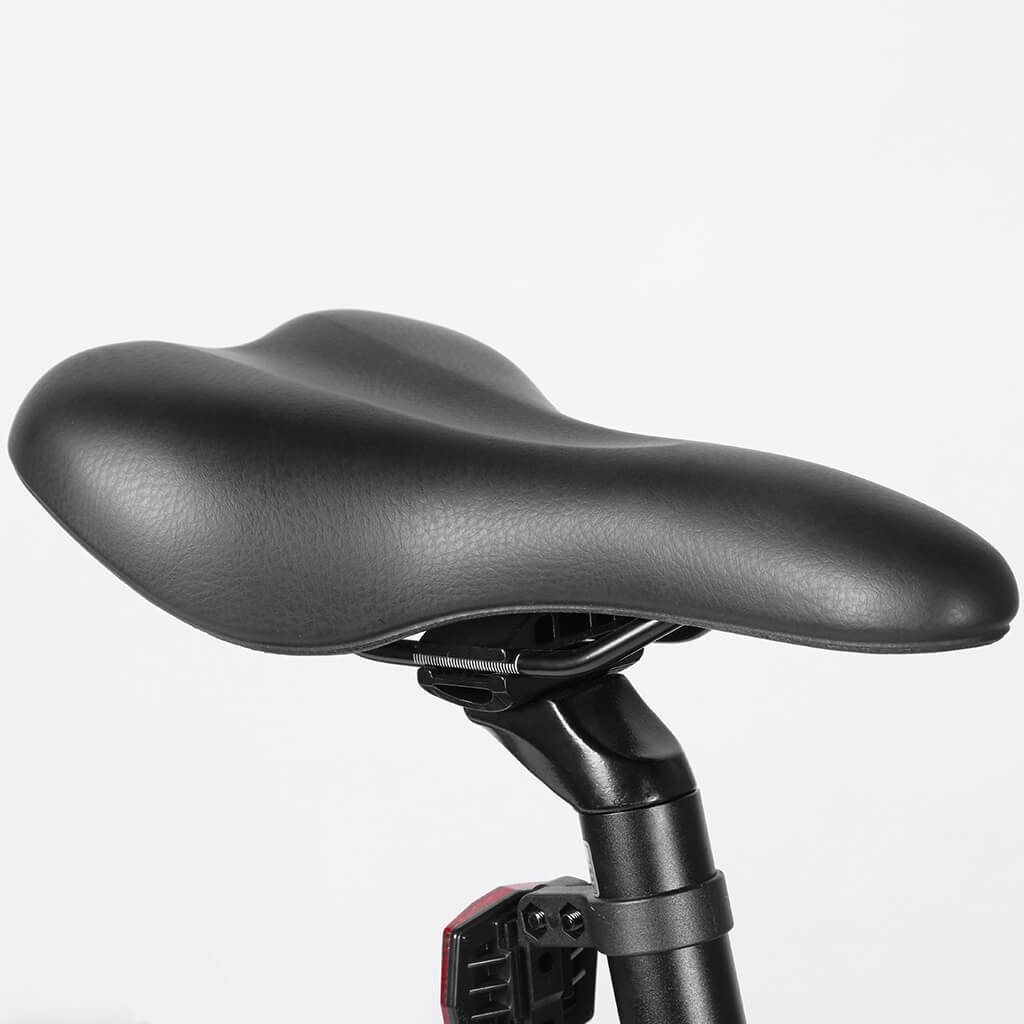

Chain Wheel	Aluminum alloy chain wheel	Saddle	Memory cotton comfort leather saddle

Geometry

Handlebar Height	Highest: 41.3'' Lowest: 32.3''	Handle Height	Highest: 50.4'' Lowest: 46.5''
Handlebar Width	23.62''	Step-through size	27.6''
Bike Weight	59.5lbs(27kg)	Package Weight	70.54lbs(32kg)
Carrying Capacity	220lbs(100kg)	Recommend rider heights	5'4"- 6'5"

FEATURES

80C B&W Screen Display

With waterproof connectors, display the battery bar/ riding speed /riding mileage/motor output power, etc.
Push mode: Use it when you need to push the bike uphill.

Thumb Throttle & Leather Grips

750W of power allows you to accelerate using the throttle without having to pedal.
Leather handlebars bring a more comfortable feeling.

Headlight

5W headlights are ready to illuminate your journey

26inch Puncture-proof Tire

CST "26*4" Fat tires for flat, highway, urban areas.

MOUNTAIN BIKE FEATURES

The cruise control function allows the bike constant speed forward.

CRUISE CONTROL--Free your thumb and keep the bike running at a constant speed.

SPECIFICS

Electronic

Battery	48V/10.4AH Samsung lithium battery	Charger	US standard 2.0 A smart charger
Motor	750W high-speed brushless motor	Display	80C multi-function digital display
Throttle	Thumb throttle. Three levels gear throttle in the default. Can be adjusted by display	Headlight	5V Bright round light
Battery Charging time	4-5 hours	Mileage	30-35 miles (E-bike) \|60-65 miles (PAS)

E-bike Components

Frame	17.5 inch high-grade rust-proof aluminum alloy frame, foldable	Tires	26*4 inch tires for flat, highway, urban areas
Transmission	Shimano 7 speed + Shimano 370 thumb shifter	Freewheel	Shimano M370 7 speed
Brake Lever	Aluminum brake lever with mechanical cut-off	Brake	160mm Front and rear hydraulic disc brakes
Front Suspension	Aluminum alloy shock, lockable front fork	Rear Suspension	Aluminum alloy hydraulic shock absorber
Chain Wheel	Aluminum alloy chain wheel	Saddle	Memory cotton comfort leather saddle

Geometry

Handlebar Height	Highest: 41.3'' Lowest: 32.3''	Handle Height	Highest: 50.4'' Lowest: 46.5''
Handlebar Width	23.62''	Step-through size	27.6''
Bike Weight	59.5lbs(27kg)	Package Weight	70.54lbs(32kg)
Carrying Capacity	220lbs(100kg)	Recommend rider heights	5'4"- 6'5"

VIDEO REVIEW

Three riding modes are available

ECO mode: Pressing/twisting the throttle enters pure electric power without pedaling--(30-35 miles).

PAS mode: Pedaling with the power assist allows you to pedal effortlessly and more energy-efficient--(60-65 miles).

SPORTS mode: Pedaling without starting electric power. Exercise whenever you want (or the battery runs out), burn more body calories!--infinite.

Write a Review

average rating 4.2 out of 5

Based on 6 reviews

5 Stars

4 Reviews
4 Stars

0 Reviews
3 Stars

1 Review
2 Stars

1 Review
1 Star

0 Reviews

67% of reviewers would recommend this product to a friend

6 Reviews

Sort by

Reviewed by Matthew B C.

Verified Reviewer

I recommend this product

Rated 5 out of 5

Review posted

Radical Ride!!!

The XC200 Fat Tire is the ultimate adventure/commuter/melt your face off bike. The 1 Star reviews out there are totally bogus... Eahora is legit. The packing upon arrival could withstand a nuclear blast...props to the packing and shipping dept. This probably isn't the bike for a smaller ( shorter ) rider. I'm 6'1", 165lbs., with an athletic background, so it's ideal for me. I'll probably get a couple more lith.ion batteries so I can ride cross country. Thanks Eahora for making a bike that defines super-stylo!

Was this helpful?

Reviewed by Sam y., from United States

Verified Buyer

I don't recommend this product

Rated 2 out of 5

Review posted

Fun ride, but poor tires/tubes

Fun ride, but for $1,700, should have thicker tubes, and probably self sealing ones which is only a miner cost and better customer experience. Had my bike for about 1 month and did 4 rides and already have a flat from some tiny goat heads. I like the bike minus the poor quality of the tires/inner tubes. Other bikes at $1,500 are a better deal.

Was this helpful?

Reviewed by Dahir, from United States

Verified Buyer

I recommend this product

Rated 5 out of 5

Review posted

Great Bike

Easy to assemble and an awesome ride. I was surprised by the amount of power this bike has. This is my first e-bike and the results were beyond my expectations.

Was this helpful?

Reviewed by Don T., from United States

Verified Buyer

I recommend this product

Rated 5 out of 5

Review posted

The bike lives up to Eahora's description in all ways

I REALLY like this bike. I've been able to ride it for two days now that the smoke has gone and I've put over 32 miles on it.

It is really well engineered - solid and adjustable just about every way you need it to be. Today I discovered that the seat post clamp has a thumb screw so I can easily adjust the seat on the fly. Not tools needed! It does mean you'd want to take the seat with you when the bike is out of sight.

It easily goes 23-26 mph without pedaling when you're in PAS 3. If you pedal at all the bike will supplement your pedaling to the top speed for the PAS level you have it set to. You can program it for up to 7 PAS levels and the top speed for each level will get more granular.

The speed limit on shared use paths around here is 15 mph and if I have the bike in PAS 1 it won't go over 14.

It goes fasted in each level when you use the throttle alone with no pedaling but it's quite easy to maintain a good speed with minimal pedaling due to the PAS boost.

The power up the steepest hill from a dead stop gave me 7 mph which is just fine. The regeneration down long hills while coasting twice made the power bars increase by 1 so that works!

One thing to note - the computer you get on the bike is the one in the pictures online but the manual they have a link to on the XC200 page isn't the right one. Go to the Blog on the web site and you can download the owner's manual (doesn't come in the box) and the correct computer manual - 80C - from Google drive.

Was this helpful?

Reviewed by edward v., from United States

Verified Buyer

Rated 3 out of 5

Review posted

Poor assembly instructions.

It would be nice to have an assembly procedure.
